  8. Limit Switch, Adjustable Rod, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side

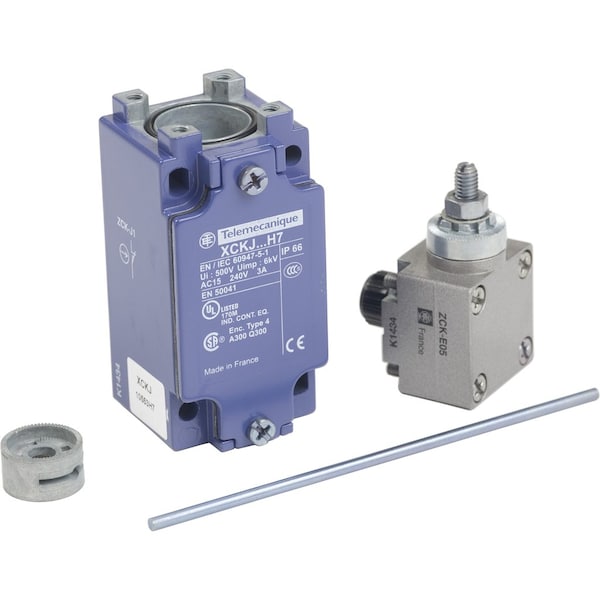

Telemecanique Sensors Limit Switch, Adjustable Rod, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side XCKJ10553H7 - main

Limit Switch, Adjustable Rod, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side

  • Mfr # XCKJ10553H7

  • Zoro # G0835856

product price:  $153.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Adjustable Rod, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A @ 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XCKJ10553H7
Zoro #
G0835856
UPC #
785901909057
Country of Origin
France

Dimensions

Width
40 mm
Body Height - Limit Switch
77 mm
Body Depth - Limit Switch
44 mm

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Adjustable Rod, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A @ 240V
Amps
10
Movement
rotary
Standards
UL 508, CENELEC EN 50041, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, EN 60204-1, CSA C22.2 No 14
Special Features
lateral approach, 1 or 2 programmable direction
Body Material
zamak
Certification
CSA, CCC, UL
Body Style (Limit Switch)
fixed
Head Material
zamak
Electrical Connection
screw-clamp terminals 1 x 0.34, 2 x 1.5 sq mm
IP Rating
IP66 conforming to IEC 60529
Operating Temp. Range
-25-70 Degrees C
Series
XCKJ
Short Circuit Protection
10 A cartridge fuse gG
Weight
0.485 kg
Contact Action
snap action
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Electrical Durability
5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Min. Actuation Velocity Horizontal
1.5 m/s
Actuation Type
by 30 Degree cam
Head Type
rotary head
Mechanical Durability
30000000 cycles
Operating Torque - Maximum
2.21 in-lb
Type Of Operator
spring return round rod lever metal round rod 3 mm, L = 125 mm
Number Of Poles
2

Description

Limit Switch
