  15. Limit switch, Adjustable Roller Lever, Rotary, 1NC/1NO, 3A at 240V AC, Actuator Location: Side

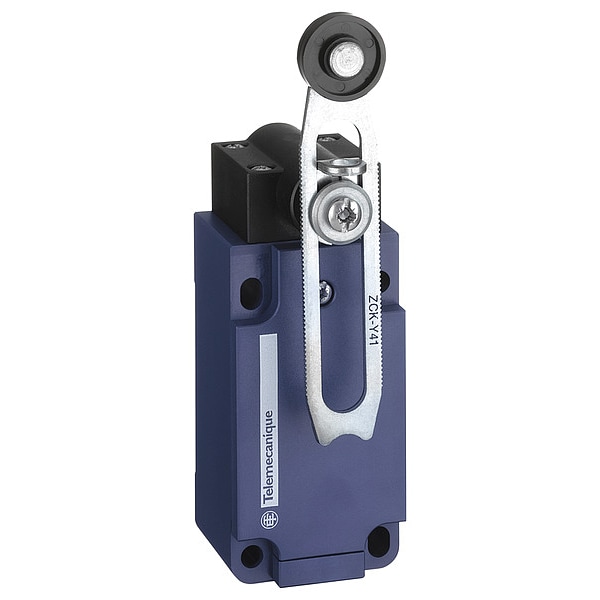

Telemecanique Sensors Limit switch, Adjustable Roller Lever, Rotary, 1NC/1NO, 3A at 240V AC, Actuator Location: Side XCKS541H7 - main

Limit switch, Adjustable Roller Lever, Rotary, 1NC/1NO, 3A at 240V AC, Actuator Location: Side

  • Mfr # XCKS541H7

  • Zoro # G0196755

product price: $76.39
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Adjustable Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
3A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCKS541H7
Zoro #
G0196755
UPC #
785901719151
Country of Origin
Indonesia

Dimensions

Roller Width
0.22 in
Body Depth - Limit Switch
57 mm
Body Height - Limit Switch
117-172 mm
Width
40 mm
Roller Dia.
0.75 in
Arm Width
0.75 in
Body Width - Limit Switch
1.57 in
Overall Width
1.57 in
Body Width
1.57 in
Body Depth
1.46 in
Overall Height
6.77 in
Overall Depth
2.24 in
Roller Diameter
0.75 in

Details

Item
Limit switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Adjustable Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
3A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Special Features
1 or 2 programmable direction, Lateral approach
Roller Material
Thermoplastic
Movement
Angular
Actuator Style
Roller Lever Plunger
IP Rating
66, 67
Head Material
plastic
DC Contact Rating
0.27 A @ 250 V
Arm Material
Thermoplastic
Contact Form - Limit Switch
1NC/1NO
AC Contact Rating
3 A @ 240 V
Certification
CCC, CSA, UL
Operating Temp. Range
-13 Degrees F to 158 Degrees F
Standards
CENELEC EN 50041, CSA C22.2 No 14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508
Actuator Location
Side
Contact Form
1NC/1NO
Body Material
Plastic
Body Style (Limit Switch)
fixed
Electrical Connection
Screw Terminals
Series
XCKS
Wiring Entry
1/2 in NPT
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Short Circuit Protection
10 A cartridge fuse gG
Contact Action
slow-break, break before make
Actuation Type
by 30° cam
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Mechanical Durability
20000000 cycles
Min. Actuation Velocity Horizontal
1.5 m/s
Head Type
rotary head
Weight
0.165 kg
Electrical Durability
5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Number Of Poles
2
Type Of Operator
spring return roller lever thermoplastic variable length
Operating Torque - Maximum
0.89 in-lb
Operating Temperature - Minimum
-13 Degrees F
Directional Movement
Angular
Resistance Properties
Shock Resistant, Vibration Resistant
Mounting Style
Surface
Operating Temperature - Maximum
158 Degrees F

Description

Limit switch, Actuator Style - Limit Switch Lever, Roller, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 3A @ 240V, Contact Form- Switches 1NC/1NO, Body Width - Limit Switch 1.57 in, Body Style - Limit Switch Miniature, Mounting - Limit Switch Surface, Electrical Connection Screw Clamp Terminals, IP Rating IP66, IP67, Special Features 1 or 2 programmable direction, Lateral approach

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
