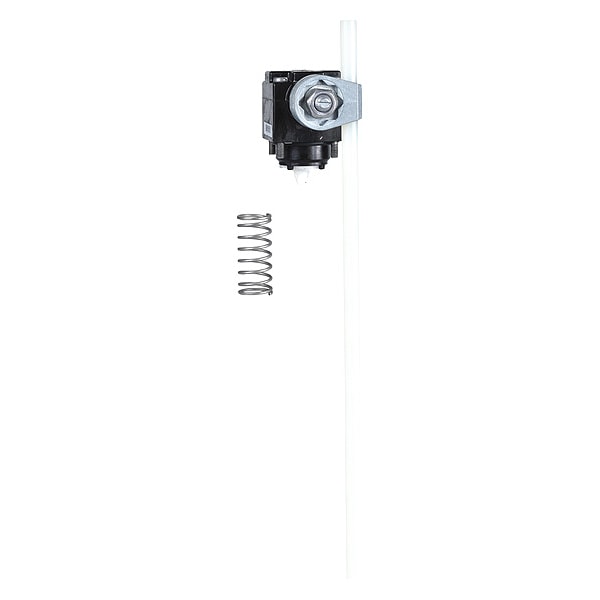

Telemecanique Sensors Limit Switch Head Zckd59 ZCKD59 - main

Limit Switch Head Zckd59

  • Mfr # ZCKD59

  • Zoro # G0837168

product price: $64.45
/ea

Key Features

Actuator Style
Rod
Actuator Location
Side
Actuator Length
8 in
IP Rating
Not Rated
Action
Momentary
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZCKD59
Zoro #
G0837168
UPC #
785901102885
Country of Origin
Multiple

Dimensions

Actuator Length
8 in

Details

Item
Limit Switch Head
Actuator Style
Rod
Actuator Location
Side
IP Rating
Not Rated
Action
Momentary
Includes Actuator
Actuator Included
Directional Movement
CCW/CW
Compatible with Series
XCKL, XCKM, XCKS
NEMA Enclosure Rating
Not Rated
Type Of Operator
rod lever spring return glass fiber round rod 6 mm, L = 200 mm)
Movement Of Operating Head
rotary
Associated Body
ZCKS5H29 || ZCKMD31H7 || ZCKLD35H7 || ZCKMD39H7 || ZCKMD35 || ZCKS9H29 || ZCKS1H29 || ZCKL6H7 || ZCKS5 || ZCKS1 || ZCKLD35 || ZCKL5H7 || ZCKS6H29 || ZCKM5H7 || ZCKSD35 || ZCKLD31 || ZCKM8 || ZCKMD37 || ZCKM7H29 || ZCKS6 || ZCKS7H29 || ZCKM1H7 || ZCKS9 || ZCKS2H29 || ZCKM8H29 || ZCKLD37 || ZCKLD39H7 || ZCKMD39H29 || ZCKSD35H29 || ZCKM6H29 || ZCKMD31 || ZCKLD39 || ZCKSD39 || ZCKMD31H29 || ZCKM9 || ZCKLD37H7 || ZCKL5 || ZCKM1H29 || ZCKM6 || ZCKS2 || ZCKSD39H29 || ZCKS8 || ZCKL6 || ZCKMD35H7 || ZCKSD31H29 || ZCKS7 || ZCKSD31 || ZCKM6H7 || ZCKM5 || ZCKMD39 || ZCKM9H29 || ZCKMD35H29 || ZCKL1H7 || ZCKL7 || ZCKM7H7 || ZCKL8 || ZCKM8H7 || ZCKL7H7 || ZCKL1 || ZCKSD37 || ZCKL8H7 || ZCKLD31H7 || ZCKSD37H29 || ZCKM5H29 || ZCKM1 || ZCKS8H29 || ZCKMD37H29 || ZCKMD37H7 || ZCKM7
Product Compatibility
XCKS || XCKM || XCKL
Positive Opening
without
Head Type
rotary head
Head Material
plastic
Product Or Component Type
limit switch head
Environmental Characteristic
standard environment
Switch Actuation
by any moving part
Device Short Name
ZCKD
Series Name
standard format
Ambient Air Temperature For Storage
-40-70°C
Type Of Approach
lateral approach, 2 directions
Ambient Air Temperature For Operation
-25-70°C

Description

Limit Switch Head, Actuator Style Rod, Actuator Location Side, Actuator Length 8 in, IP Rating Not Rated
