  8. Limit Switch, Plunger, Roller, 1NC/1NO, 10A at 240V AC, Actuator Location: Top

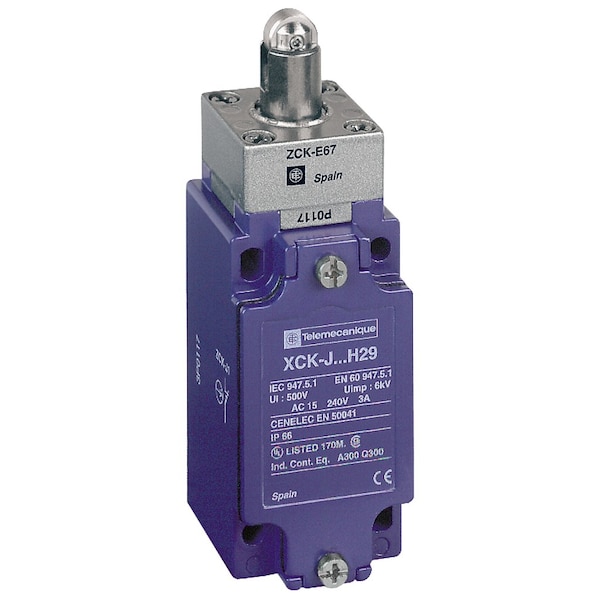

Telemecanique Sensors Limit Switch, Plunger, Roller, 1NC/1NO, 10A at 240V AC, Actuator Location: Top XCKJ167 - main

Limit Switch, Plunger, Roller, 1NC/1NO, 10A at 240V AC, Actuator Location: Top

  • Mfr # XCKJ167

  • Zoro # G0835899

product price:  $133.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A @ 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XCKJ167
Zoro #
G0835899
UPC #
785901093749
Country of Origin
Indonesia

Dimensions

Width
40 mm
Body Depth - Limit Switch
44 mm
Body Height - Limit Switch
77 mm

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A @ 240V
Amps
10
Operating Temp. Range
-25-70 Degrees C
Body Material
zamak
Actuator Style
Roller Plunger
Special Features
lateral approach, 2 directions
Electrical Connection
screw-clamp terminals 1 x 0.34, 2 x 1.5 sq mm
Movement
linear
Body Style (Limit Switch)
fixed
Certification
CSA, UL, CCC
Standards
EN 60947-5-1, IEC 60947-5-1, UL 508, IEC 60204-1, CSA C22.2 No 14, CENELEC EN 50041, EN 60204-1
IP Rating
IP66 conforming to IEC 60529
Series
XCKJ
Operating Force
16 N
Head Material
zamak
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Head Type
plunger head
Short Circuit Protection
10 A cartridge fuse gG
Min. Actuation Velocity Horizontal
1 m/s
Mechanical Durability
25000000 cycles
Electrical Durability
5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Weight
0.455 kg
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Actuation Type
by 30 Degree cam
Contact Action
snap action
Operating Force - Maximum
16 N
Number Of Poles
2
Type Of Operator
spring return roller plunger metal reinforced

Description

Limit Switch
