  8. Limit Switch, Plunger, SPDT, 10A at 300V AC, Actuator Location: Top

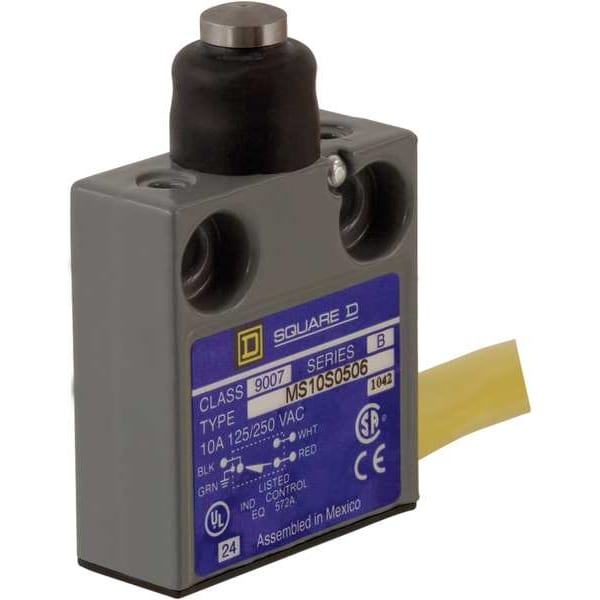

Telemecanique Sensors Limit Switch, Plunger, SPDT, 10A at 300V AC, Actuator Location: Top 9007MS10S0506 - main
Shop TELEMECANIQUE SENSORS

Limit Switch, Plunger, SPDT, 10A at 300V AC, Actuator Location: Top

  • Mfr # 9007MS10S0506

  • Zoro # G1440503

product price:  $165.19
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 300V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9007MS10S0506
Zoro #
G1440503
UPC #
785901535737
Country of Origin
Mexico

Dimensions

Actuator Length - Limit Switch
0.67 in
Actuator Length
0.67"
Body Height - Limit Switch
1.75 in
Body Width - Limit Switch
1.58 in
Depth
0.62"
Height
2.42"
Width
1.56"
Body Depth - Limit Switch
0.62 in
Mounting Hole Diameter
0.2 in
Body Height
1.75 in
Overall Width
1.56 in
Body Depth
0.62 in
Manufacturer Warranty Length
18 mo
Overall Height
1.75 in
Body Width
1.58 in
Overall Depth
0.62 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 300V
DC Contact Rating - Limit Switch
5A at 28V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Actuator Style (Limit Switch)
Plunger
Basic Actuator Style (Limit Switch)
Plunger
Actuator Location
Top
Body Style (Limit Switch)
Miniature
Actuator Style
Plunger
Stem Thread - Limit Switch
No Stem
Limit Switch Style
General Purpose Limit Switch
Mounting Hole Spacing - Limit Switch
0.98 in
Body Material
Zinc
Voltage Rating
240VAC/28VDC
Boot Sealed Actuator (Limit Switch)
Yes
Series
9007MS
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Electrical Connection
Pre-Wired Cable
AC Contact Rating
10 A @ 300 V
Operating Force
5.0 in-lb
Operating Temp. Range
-4 Degrees to 221 Degrees F (-20 Degrees to 105 Degrees C)
Contact Form
1NO/1NC
Standards
CCC, CSA, CSA C22.2 No.14, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, UL Listed
Number of Poles
1
Contact Form - Limit Switch
SPDT
Movement
Vertical
Boot Sealed Actuator - Limit Switch
Yes
IP Rating
IP67
Wiring Entry
Potted Cable
Actuator Location (Limit Switch)
Top
Mounting Hole - Limit Switch
(2) 0.20 in dia
DC Contact Rating
5 A @ 28 V
NEMA Rating
1, 12, 13, 2, 4, 6, 6P
Travel
0.19 in
Amps
10 AC/5 DC
Contact Material
silver contacts
Special Features
vertical approach, 1 direction
Certification
UL || CSA || CE
Weight
1.2 lb(US)
Shock Resistance
35 gn 9 ms IEC 60068-2-27
Mechanical Durability
10000000 cycles
Contact Action
snap action
Head Type
plunger head
Actuation Type
on end
Electrical Durability
100000 cycles
Vibration Resistance
10 gn 75-1200 Hz)IEC 60529
Operating Force - Maximum
80 ozf
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6, 6P
Resistance Properties
Shock Resistant, Vibration Resistant
Number of Mounting Holes
2
Boot Sealed Actuator
Boot Included
Mounting Style
Surface
Operating Temperature - Minimum
-40 Degrees F
Mounting Hole Horizontal Center to Center Distance
25 mm
Directional Movement
Linear
Operating Temperature - Maximum
220 Degrees F
Type Of Operator
spring return plunger stainless steel booted

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 300V, DC Contact Rating - Limit Switch 5A @ 28V, Contact Form- Switches SPDT, Actuator Length - Limit Switch 0.67 in, Body Height - Limit Switch 1.75 in, Body Width - Limit Switch 1.58 in, Body Depth - Limit Switch 0.62 in, Boot Sealed Actuator - Limit Switch Yes, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6, 6P, Mounting - Limit Switch Surface
