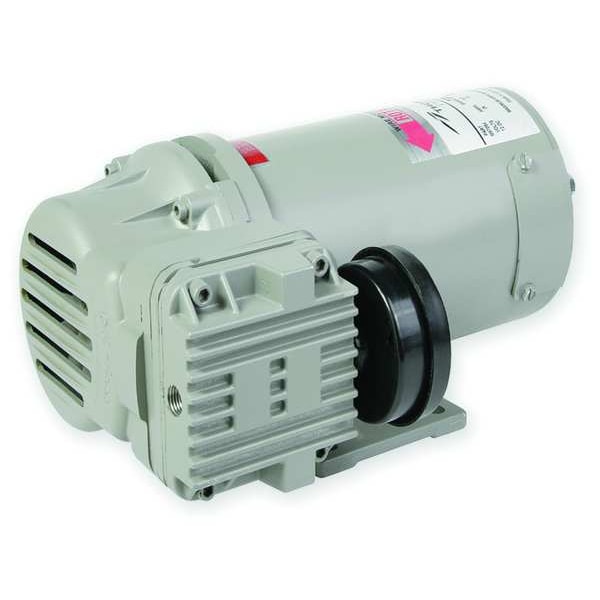

Piston Air Compressor, 1/3HP, 12VDCV

  • Mfr # 270025

  • Zoro # G3189776


product price: $1,157.99
/ea
Free Shipping & Returns

Key Features

Lubrication Type
Oil Free
Number of Cylinders
1
HP
1/3 hp
Phase
Single
Voltage
12V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
270025
Zoro #
G3189776
UPC #
094705450178
Country of Origin
United States

Dimensions

Inlet Size
1/4 in
Outlet Size
1/4 in
Overall Length
11.2 in
Overall Height
8.625 in
Overall Width
5.625 in

Details

Item
Piston Air Compressor
Lubrication Type
Oil Free
Number of Cylinders
1
HP
1/3 hp
Phase
Single
Voltage
12V DC
Sound Rating
65 to 70 dBA
Power Cord
No
Free Air CFM @ 100 PSI
0.95
Valve
Stainless Steel
Thermal Protection
No
Temp. Range
0 Degrees to 104 Degrees F
Max. PSI Cont./Int.
-/100
Free Air CFM @ 20 PSI
1.75
Full Load Amps
28
RPM
1800
Cylinder Material
Cast Iron
Motor Type
Permanent Magnet
Finish
Paint
Free Air CFM @ 0 PSI
2.2
Free Air CFM @ 50 PSI
1.34
Maximum Intermittent Pressure
100 psi
Sound Level
70 dBA
Minimum Operating Temperature
32 Degrees F
Enclosure Type
Totally Enclosed
Valve Material
Stainless Steel
Mounting Style
Thru-Bolt
Free Air Flow Rate
1 cfm
Output Power
0.333 hp
Pump Type
Articulating Piston
Maximum Operating Temperature
104 Degrees F
Air Tank Style
Tankless
Current Rating
28.0 A
Maximum Speed
1,800 RPM
Outlet Type
NPT
Piston Type
Articulating
Inlet Type
NPT
Maximum Continuous Pressure
100 psi

Description

Piston Air Compressor, Lubrication Type Oil Free, Number of Cylinders 1, Output Power 0.333 hp, Phase Single, Voltage 12V DC, Maximum Continuous Pressure 100 psi, Maximum Intermittent Pressure 100 psi, Free Air Flow Rate 1 cfm, Maximum Speed 1,800 RPM, Inlet Size 1/4 in, Inlet Type NPT, Outlet Size 1/4 in, Outlet Type NPT
