Rocking Piston Air Comp, 1/2HP, 30/30psi

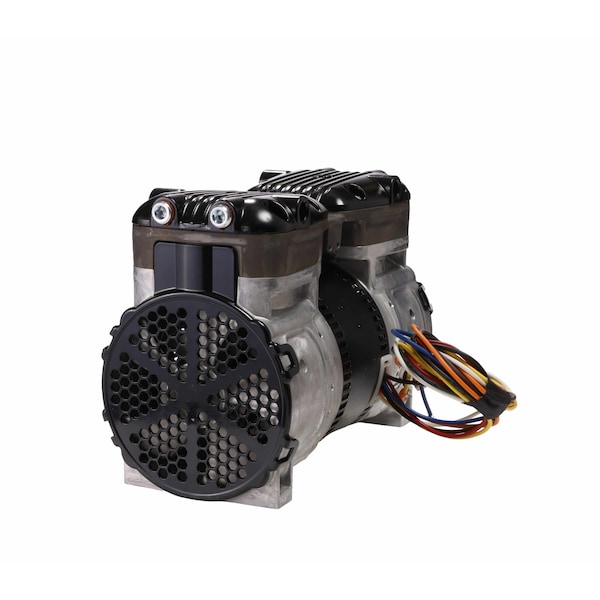

Gast Rocking Piston Air Comp, 1/2HP, 30/30psi 87R645-101-N470X
Tap to zoom
Hover or click to zoom
$665.61
  • Item: Rocking Piston Air Compressor
  • HP: 1/2 hp
  • Voltage: 115/120, 230/240
See full product details
This item ships free.

Total: $665.61

Gast #87R645-101-N470X Specifications

  • Item: Rocking Piston Air Compressor
  • HP: 1/2 hp
  • Voltage: 115/120, 230/240
  • Full Load Amps: 6.0/3.0
  • Max. PSI Cont./Int.: 30/30
  • Free Air CFM @ 0 PSI: 4.6
  • Free Air CFM @ 50 PSI: 1.3
  • Max. Vacuum: 27.5 in Hg
  • Free Air CFM @ 0 In. Hg: 4.5
  • Free Air CFM @ 10 In. Hg: 2.8
  • Design: Rocking Piston
  • Free Air CFM @ 20 PSI: 3.8
  • Thermal Protection: Automatic
  • Overall Height: 7 1/8 in
  • Motor Type: Electric
  • Inlet Size: 1/4 in NPT
  • Free Air CFM @ 20 In. Hg: 1.2
  • Outlet Size: 1/4 in NPT
  • Cylinder Material: Aluminum
  • Standards: CUR. CE
  • Overall Length: 9 5/8 in
  • Free Air CFM @ 100 PSI: 0.88
  • Sound Rating: 65 dBA
  • Temp. Range: 5 Degrees to 40 Degrees C
  • Hz: 50/60
  • Valve: Stainless Steel
  • RPM: 1725/1425
  • Power Cord: No
  • Phase: 1
  • Application: Industrial
  • Overall Width: 5 1/8 in
  • Free Air CFM @ 40 PSI: 1.4
  • Finish: Black
  • Lubrication Type: Oil-less
  • Number of Cylinders: 2
  • Sound Level: 65 dBA
  • Inlet Size (Combined): 1/4 in NPT
  • Air Tank Style: Tankless
  • Compressor Pump Style: Rocking
  • Outlet Size (Combined): 1/4 in NPT
  • Current Rating: 3.0 A, 6.0 A
  • Inlet Type: NPT
  • Maximum Operating Temperature: 40 Degrees C
  • Maximum Intermittent Pressure: 30 psi
  • Valve Material: Stainless Steel
  • Maximum Pressure Cont/Int: 30 psi / 30 psi
  • Maximum Speed: 1,725 RPM
  • Piston Type: Rocking
  • Phase (Broad): 1
  • Frequency: 50 Hz, 60 Hz
  • Maximum Continuous Pressure: 30 psi
  • Minimum Operating Temperature: 5 Degrees C
  • Output Power: 0.5 hp
  • Outlet Type: NPT
  • Free Air Flow Rate: 4.6 cfm
  • Pump Type: Rocking Piston
  • Maximum Vacuum: 27.5 in Hg
  • Country of Origin (subject to change): United States

Description

Rocking Piston Air Compressor, 1/2 hp HP, Voltage 115/120, 230/240, 50/60 Hz, 1 Phase, Full Load Amps 6.0/3.0, Inlet Size 1/4 in NPT, Outlet Size 1/4 in NPT, Max. PSI Cont./Int. 30/30, Free Air CFM @ 50 PSI 1.3, 27.5 in Hg Max. Vacuum, Free Air CFM @ 20 In. Hg 1.2, Overall Length 9 5/8 in, Overall Width 5 1/8 in, Overall Height 7 1/8 in, Cylinder Material Aluminum, Number of Cylinders 2, Motor Type Electric, 1725/1425 RPM, 65 dBA Sound Rating, Rocking Piston Design, Lubrication Type Oil-Less
