Shop U.S. MOTORS

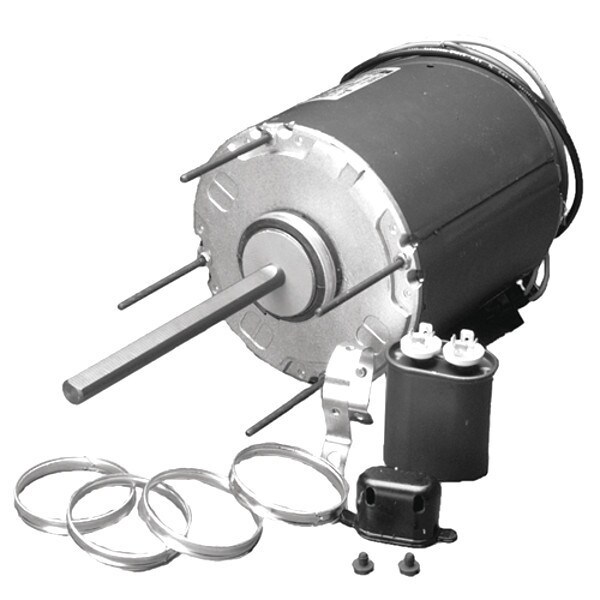

Condenser Fan Motor, 1/3 hp

  • Mfr # 5345
  • Zoro # G8041687
product price:
$
190.99
/ea
Free Shipping & Returns

Key Features

HP
1/3
Nameplate RPM
825
Voltage
230V AC
Frame
48Y
Shaft Dia.
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5345
Zoro #
G8041687
UPC #
786382005580
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
6 in
Length Less Shaft
6 7/8 in
Resilient Ring Dia.
2 1/2 in
Overall Length
12 7/8 in
Bolt Circle Dia.
5 1/8 in
Body Dia.
5 5/8 in
Stud Size
#8-32
Mounting Stud Length
1 in
Body Diameter
5.6 in
Shaft Diameter
1/2 in
Bolt Circle Diameter
5 1/8 in
Frame Size
48Y
Mounting Stud Thread Size
#8-32
Resilient Ring Diameter
2 1/2 in
Wire Rope Length
12 7/8 in
Length
12 7/8 in

Details

HP
1/3
Nameplate RPM
825
Voltage
230V AC
Frame
48Y
Motor Shaft Rotation
CW/CCW
RPM Range
0-1,000
Nominal Efficiency
64 %
Motor Sub Application
Direct Drive Fan/Blower
Motor Mounting Type
Ring
Motor Thermal Protection
Auto
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 120V AC, 240V AC, 200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 460V AC, 230V AC, 240V AC, 277V AC, 230V AC
Duty
Continuous
Ins. Class
B
Item
Condenser Fan Motor
Full Load Amps
3 A
Motor Design
Permanent Split Capacitor
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Motor Application
HVAC/R
Motor Bearings
Ball
Max. Ambient Temp.
60 Degrees C
Phase
Single
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Enclosure Design
Open Dripproof
Ring to Ring Center
6 7/8 in
No. of Speeds
1
Standards
CSA (156060), UL (E22922)
Motor Shaft Design
Double-Flat
Hz
60 Hz
Capacitor Required
Capacitor Included
Motor Service Factor
1
Duty Cycle
Continuous
Bearing Protection
Water Slingers
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Mounting Stud Location
Shaft End
Product Type
Condenser Fan Motor
Bearing Type
Ball
Frequency
60 Hz
Full Load Current @ 60 Hz
3 A
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B
Mounting Position
Horizontal/Vertical Shaft Up
Drive Type
Direct Drive
Number of Speeds
1
Shaft Design
Double Flat
Frame Material
Steel
Ambient Temperature - Maximum
60 Degrees C
Sub Application
Condenser Fan
Motor Enclosure Type
Open Drip Proof

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 825 RPM, No. of Speeds 1, Voltage 230V AC, 3 A Full Load Amps, 48Y Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Resilient Ring
