Shop U.S. MOTORS

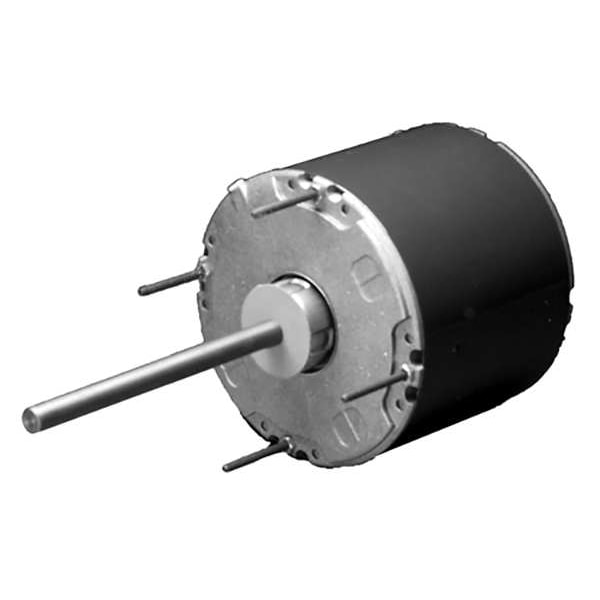

Condenser Fan Motor, 1/3 hp

  • Mfr # 8667
  • Zoro # G0215016
product price:
$
265.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
RPM Range
0-1,000
No. of Speeds
1
Voltage
230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8667
Zoro #
G0215016
UPC #
786382007317
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Overall Length
12 1/16 in
Bolt Circle Dia.
5 1/8 in
Body Dia.
5 5/8 in
Stud Size
7/8 in
Shaft Length
6 in
Lead Length
30 in
Length Less Shaft
6 1/16 in
Mounting Stud Thread Size
7/8"
Frame Size
48Y
Shaft Diameter
1/2 in
Bolt Circle Diameter
5 1/8 in
Body Diameter
5.6 in
Wire Rope Length
12 1/16 in
Length
12 1/16 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3
RPM Range
0-1,000
No. of Speeds
1
Voltage
230V AC
Motor Shaft Rotation
CW/CCW
Frame
48Y
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Stud
Hz
60 Hz
Ins. Class
B
Capacitor Required
Capacitor Not Included
Nominal Efficiency
68 %
Ring to Ring Center
5 1/2 in
Max. Ambient Temp.
60 Degrees C
Item
Condenser Fan Motor
Motor Service Factor
1
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Motor Sub Application
Condenser Fan
Full Load Amps
2.0 A
Motor Thermal Protection
Auto
Motor Shaft Design
Double-Flat
Motor Bearings
Ball
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 120V AC, 240V AC, 200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 460V AC, 230V AC, 240V AC, 277V AC, 230V AC
Motor Mounting Position
All Angle
Motor Application
HVAC/R
Stud Quantity
4
Duty
Continuous
Standards
CSA (156060), UL (E22922)
Nameplate RPM
825
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Bearing Protection
Water Slingers
Ambient Temperature - Maximum
60 Degrees C
Shaft Design
Double Flat
Bearing Type
Ball
Frequency
60 Hz
Mounting Position
All Angle
Number of Speeds
1
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
2.0 A
Drive Type
Direct Drive
Insulation Class
B
Frame Material
Steel
Motor Enclosure Type
Open Drip Proof
Sub Application
Condenser Fan
Product Type
Condenser Fan Motor

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 825 RPM, No. of Speeds 1, Voltage 230V AC, 2.0 A Full Load Amps, 48Y Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Stud, Motor Frame Material Steel
