Shop U.S. MOTORS

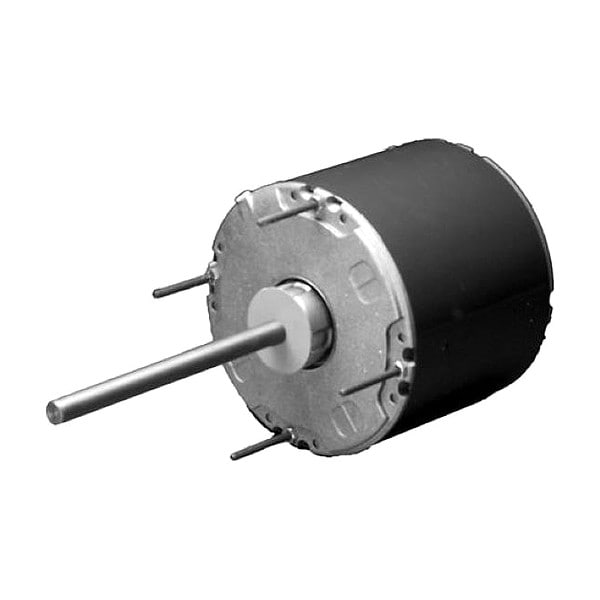

Condenser Fan Motor, 1/4 hp

  • Mfr # 8666
  • Zoro # G0214894
product price:
$
241.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
RPM Range
0-1,000
No. of Speeds
1
Voltage
230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8666
Zoro #
G0214894
UPC #
786382007300
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Lead Length
30 in
Bolt Circle Dia.
5 1/8 in
Stud Size
1/2 in
Length Less Shaft
5 9/16 in
Shaft Length
6 in
Body Dia.
5 5/8 in
Overall Length
11 9/16 in
Mounting Stud Thread Size
1/2"
Shaft Diameter
1/2 in
Bolt Circle Diameter
5 1/8 in
Frame Size
48Y
Body Diameter
5.6 in
Wire Rope Length
11 9/16 in
Length
11 9/16 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/4
RPM Range
0-1,000
No. of Speeds
1
Voltage
230V AC
Motor Shaft Rotation
CW/CCW
Frame
48Y
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Stud
Motor Bearings
Ball
Motor Application
HVAC/R
Nameplate RPM
825
Motor Mounting Position
All Angle
Standards
CSA (156060), UL (E22922)
Max. Ambient Temp.
60 Degrees C
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Capacitor Required
Capacitor Not Included
Ins. Class
B
Stud Quantity
4
Motor Shaft Design
Double-Flat
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 120V AC, 240V AC, 200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 460V AC, 230V AC, 240V AC, 277V AC, 230V AC
Motor Sub Application
Condenser Fan
Duty
Continuous
Motor Thermal Protection
Auto
Item
Condenser Fan Motor
Ring to Ring Center
5 in
Full Load Amps
1.9 A
Hz
60 Hz
Motor Service Factor
1
Nominal Efficiency
61.2 %
Duty Cycle
Continuous
Bearing Protection
Water Slingers
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Mounting Position
All Angle
Number of Speeds
1
Full Load Current @ 60 Hz
1.9 A
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1
Bearing Type
Ball
Drive Type
Direct Drive
Sub Application
Condenser Fan
Insulation Class
B
Shaft Design
Double Flat
Frequency
60 Hz
Product Type
Condenser Fan Motor
Ambient Temperature - Maximum
60 Degrees C
Motor Enclosure Type
Open Drip Proof

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 825 RPM, No. of Speeds 1, Voltage 230V AC, 1.9 A Full Load Amps, 48Y Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Stud, Motor Frame Material Steel
