Shop U.S. MOTORS

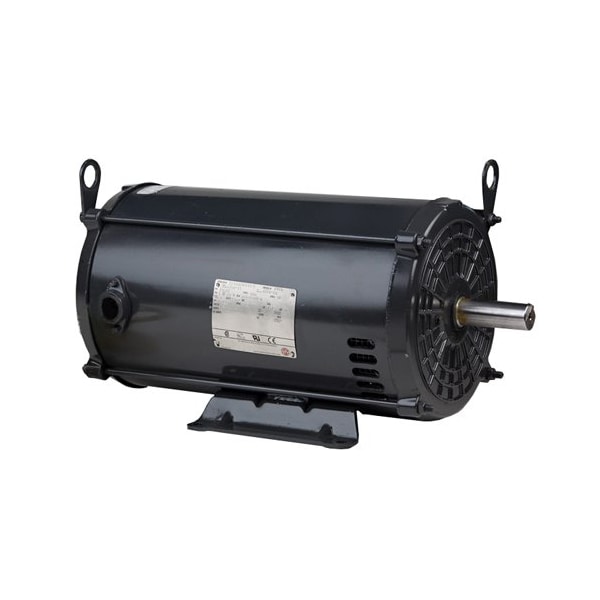

Farm Duty Motor, Capacitor-Start, 3 HP, 230V AC, 3,450 Nameplate RPM, 145TZ Frame

  • Mfr # FD3CA1K14

  • Zoro # G0408202

product price:
$
630.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Phase
Single
HP
3 hp
Voltage
230V AC
Frame
145TZ
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
FD3CA1K14
Zoro #
G0408202
UPC #
786382025939
Country of Origin
Mexico
Item
Farm Duty Motor
Motor Design
Capacitor-Start
Phase
Single
HP
3 hp
Voltage
230V AC
Frame
145TZ
Motor Service Factor
1
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Air-Over
Nameplate RPM
3,450 RPM
Motor Application
Agriculture
Motor Frame Material
Steel
Motor Mounting Type
Rigid Base
Motor Sub Application
Aeration Fan
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Item - Farm Duty Motors
Aeration Fan Motor; Crop Dryer Motor
Full Load Amps
14.9 A
Hz
60 Hz
Ins. Class
B
Capacitor Required
Capacitor Included
Motor Bearings
Ball
Nominal Efficiency
78.5 %
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1
Weight
32 lb
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V

Description

Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 3 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 14.9 A, 145TZ Frame, Usable @ 208V Usable at 208V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base, Motor Frame Material Steel, Shaft Dia. 7/8 in
