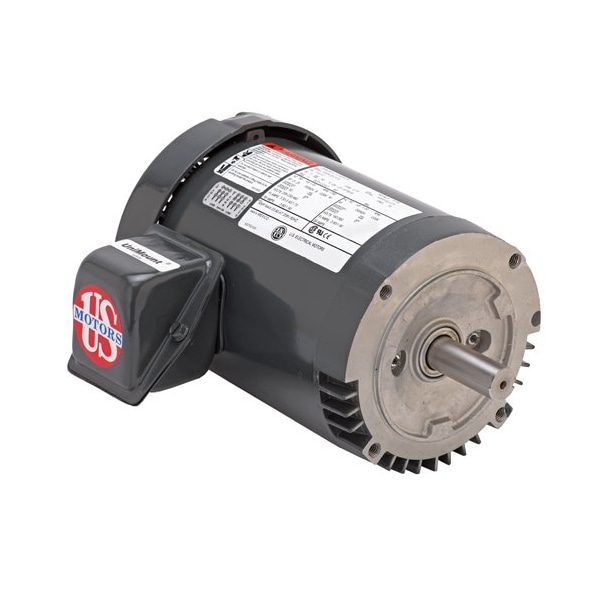

U.S. Motors GP Motor, 1/2 HP, 1765V RPM, 575, 56C U12P2GCR - main

GP Motor, 1/2 HP, 1765V RPM, 575, 56C

  • Mfr # U12P2GCR

  • Zoro # G1929071

product price: $330.99
/ea
Free Shipping & Returns

Key Features

HP
1/2
Nameplate RPM
1,765
Voltage
575V AC
Frame
56C
Shaft Dia.
5/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
U12P2GCR
Zoro #
G1929071
UPC #
786382129125
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
2 1/16 in
Length Less Shaft
8 3/4 in
Manufacturers Warranty Length
1 yr
Overall Length
10 13/16 in

Details

HP
1/2
Nameplate RPM
1,765
Voltage
575V AC
Frame
56C
Motor Shaft Rotation
CW/CCW
RPM Range
1,701-1,800
Motor Mounting Type
C-Face
Motor Service Factor
1.25
Phase
Three
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Bearings
Ball
Full Load Amps
0.8 A
Motor Application
General Purpose
No. of Speeds
1
Motor Mounting Position
Horizontal
Motor Thermal Protection
None
Max. Ambient Temp.
40 Degrees C
Voltage Compatibility
575V AC
Motor Sub Application
Fan/Blower, Pump
Item
General Purpose Motor
Motor Shaft Design
Keyed
Hz
60 Hz
Ins. Class
F
NEMA Design
B
Standards
CSA Certified, UL Recognized
Part Winding Start Capable
Yes
Usable @ 200V
No
Bearing Protection
Double Shielded
Nominal Efficiency
78.5 %
Usable @ 208V
No
Motor Frame Material
Steel
Weight
30 lb
Removable Base
Permanently Lubricated
Duty Cycle
Continuous
Inverter Rated
Yes
Inverter Rating
20:1 Variable Torque and 4:1 Constant Torque

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/2 HP, Nameplate RPM 1,765, Frame 56C, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 0.8 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 78.5 Percent, 1,701-1,800, CSA Certified, UL Recognized
