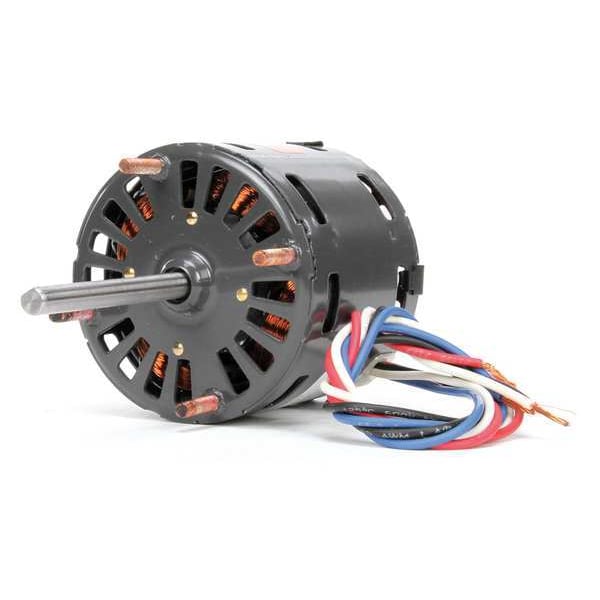

Motor, Sh Pole, 1/30 HP, 1550,115V, 3.3, Open

  • Mfr # 4YU32
  • Zoro # G1405241
product price:
$
84.99
/ea

Key Features

Length Less Shaft
3 in
Motor Shaft Design
Flat
Motor Mounting Position
All Angle
Motor Service Factor
1
Shaft Dia.
5/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4YU32
Zoro #
G1405241
UPC #
190735339183
Country of Origin
Multiple

Dimensions

Length Less Shaft
3 in
Shaft Dia.
5/16 in
Shaft Length
3 in
Body Dia.
3 5/16 in
Overall Length
6 3/16 in
Body Diameter
3.3 in
Shaft Diameter
5/16 in
Frame Size
3.3
Wire Rope Length
6 3/16 in
Length
6 3/16 in

Details

Motor Shaft Design
Flat
Motor Mounting Position
All Angle
Motor Service Factor
1
Application
Fan/Blower
Voltage Compatibility
115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 120V AC
Motor Mounting Type
Ring/Stud
Full Load Amps
1.3 A
Hz
60 Hz
No. of Speeds
3
Mounting Stud Location
4/Shaft End
Standards
CSA Certified, UL Recognized
RPM Range
1,501-1,600
Mounting Stud Pattern
2 27/32 in
Motor Thermal Protection
Auto
Phase
Single
Frame
3.3
Motor Shaft Rotation
CCWSE
Max. Ambient Temp.
40 Degrees C
Motor Sub Application
Direct Drive
Voltage
115V AC
Ins. Class
B
Nameplate RPM
1,550/1,300/1,050
Item
Fan and Blower Motor
Duty
Continuous
Replacement For
4HZ32G, 4HZ34G, 4YC64G, 5DVN8, 5DVN9, 5DVR6
Motor Application
HVAC/R
Motor Enclosure Design
Open Air-Over
Capacitor Required
Capacitor Not Required
Motor Design
Shaded Pole
Motor Bearings
Sleeve
HP
1/30
Number of Shafts
1
Duty Cycle
Continuous
Stud Quantity
4
Usable @ 200V
Not Usable at 200V
Includes
Capacitor
Usable @ 208V
Not Usable at 208V
Number of Speeds
3
Mounting
Stud
Full Load Current @ 60 Hz
1.3 A
Shaft Design
Flat
Motor Enclosure Type
Open Air Over
Mounting Position
All Angle
Ambient Temperature - Maximum
40 Degrees C
Drive Type
Direct Drive
Sub Application
Ventilator
Frame Material
Steel
Frequency
60 Hz
Product Type
Fan and Blower Motor
Bearing Type
Sleeve
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B

Description

Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/30 hp HP, Nameplate RPM 1,550/1,300/1,050 RPM, No. of Speeds 3, Voltage 115V AC, 1.3 A Full Load Amps, 3.3 Frame, 60 Hz Hz, Replacement For 4HZ32G, 4HZ34G, 4YC64G, 5DVN8, 5DVN9, 5DVR6, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE
