Shop U.S. MOTORS

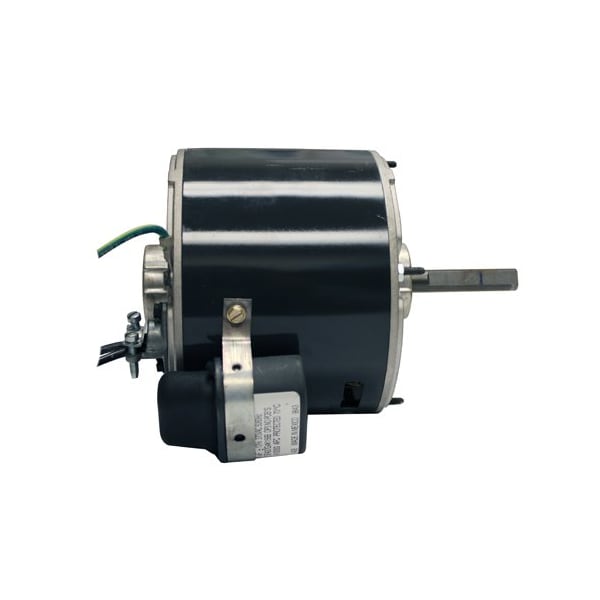

Motor, 1/6HP, 1550RPM, 208-230V, 60HZ

  • Mfr # 1527P

  • Zoro # G0917565

product price:
$
231.99
/ea
Free Shipping & Returns

Key Features

Frame
56Z
HP
0.167 HP
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Drip Proof
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1527P
Zoro #
G0917565
UPC #
786382081409
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2"
Shaft Length
2.938"
Length Less Shaft
3 9/16 in
Body Dia.
5 5/8 in
Manufacturers Warranty Length
1 yr
Overall Length
6 1/2 in
Frame Size
56Z
Shaft Diameter
1/2 in
Body Diameter
5.6 in
Wire Rope Length
6 1/2 in
Length
6 1/2 in

Details

Frame
56Z
HP
0.167 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Peripheral
Motor Shaft Rotation
Clockwise Lead End
Nameplate RPM
1550 rpm
No. of Speeds
1
Number of Shafts
1
Phase
1
RPM Range
1,501-1,600
Voltage
208-230V
Motor Bearings
Self Align Bearings
Ins. Class
A
Max. Ambient Temp.
40 Degrees C
Full Load Amps
1.4 A
Capacitor Required
Included
Hz
60 Hz
Weight
10.4 lb
Watts
100 W
Max. Amps
2.51 A
Full Load Current @ 60 Hz
1.4 A
Insulation Class
A
Product Type
Fan and Blower Motor
Sub Application
General Purpose
Number of Speeds
1
Drive Type
Direct Drive
Motor Enclosure Type
Open Air Over
Wattage
100 W
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel
Frequency
60 Hz

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/6 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 208-230V AC, 1.4 A Full Load Amps, 56Z Frame, Output Watts 100 W, 60 Hz Hz, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band, Motor Frame Material Steel, Shaft Length 2 15/16 in, Shaft Dia. 1/2 in
