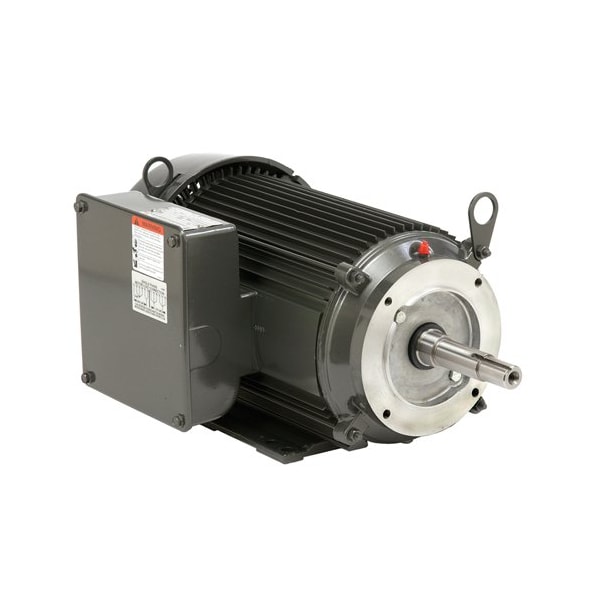

U.S. Motors Motor, 1PH, 10HP, 1800, 230V, JM UJ10C2K21M - main

Motor, 1PH, 10HP, 1800, 230V, JM

  • Mfr # UJ10C2K21M

  • Zoro # G0390605

product price:  $1,356.99
/ea
Additional $200.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
10
Nameplate RPM
1,725
Frame
215
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
UJ10C2K21M
Zoro #
G0390605
UPC #
786382045524
Country of Origin
Mexico

Dimensions

Shaft Dia.
7/8 in
Shaft Diameter
7/8 in
Frame Size
215JM

Details

Item
Pool and Spa Pump Motor
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
10
Nameplate RPM
1,725
Frame
215
Voltage
230V AC
Full Load Amps
43.0
Motor Application
Pump
Phase
Single
Motor Mounting Type
Rigid Base
Motor Frame Material
Aluminum
Ins. Class
F
Motor Sub Application
Centrifugal Pump
Motor Service Factor
1.15
Hz
60 Hz
Weight
210 lb
Max. Ambient Temp.
40 Degrees C
Part Winding Start Capable
No
Bearing Protection
Shaft Shields
No. of Speeds
1
Duty Cycle
Continuous
Full Load Current @ 60 Hz
43.0 A
Bearing Type
Ball
Bearing Protection Type
Shaft Shields
NEMA Design Class
L
Number of Speeds
1
Frequency
60 Hz
Manufacturers Warranty
16 mo
Usable @ 208V
Not Usable at 208V
Product Type
Pump Motor
Motor Enclosure Type
Totally Enclosed Fan Cooled
Standards
CSA, UR
Application
Pump
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
F
Nameplate Service Factor @ 60 Hz
1.15
Frame Material
Aluminum
Usable @ 200V
Not Usable at 200V

Description

Pool and Spa Pump Motor, Bearing Protection Shaft Shields, CC Number CC030A, Conduit Box Position F1, Duty Cycle Continuous, Frame 215, Hz 60 Hz, Full Load Amps 43.0, HP 10, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Design Permanent Split Capacitor, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Frame Material Aluminum
