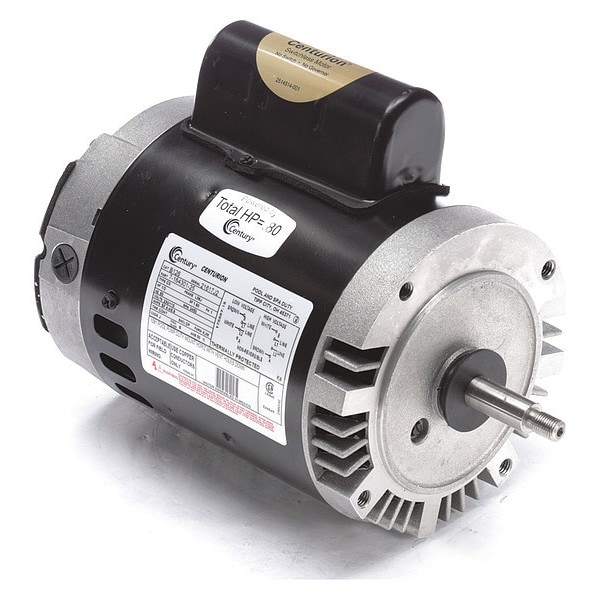

Pool Pump Motor, Permanent Split Capacitor, 1/2 HP, 56J Frame, 3,450 Nameplate RPM

product price: $216.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design Permanent Split Capacitor
  • Motor Enclosure Design Open Dripproof
  • HP 1/2
  • RPM Range 3,001-3,600
  • Motor Service Factor 1.6
See all product information

Product Information

Dimensions

Shaft Dia. 5/8 in
Shaft Length 2 1/2 in
Height 11 in
Overall Length 11 15/16 in
Length Less Shaft 9 3/8 in
Body Dia. 6.5 in
Shaft Dia. (In.) 5/8

Details

Item Pool Pump Motor
Motor Design Permanent Split Capacitor
Motor Enclosure Design Open Dripproof
HP 1/2
RPM Range 3,001-3,600
Motor Service Factor 1.6
Nameplate RPM 3,450
Frame 56J
Motor Shaft Rotation CCWSE
Voltage 115/230V AC
Phase Single
Full Load Amps 4.4/8.8
Motor Mounting Type Face
Ins. Class B
Standards CSA (LR43341/LR94643), UL (E44549/E25022), UL 1081 Approvable
Motor Thermal Protection Auto
Shaft Threaded 7/16"-20 UNF-2A RH 11/16 in From End
Shaft Material 303 Stainless Steel
Ambient Temperature 50 Degrees C
Motor Bearings Ball
Motor Efficiency Group Standard Efficient
Hz 60 Hz
Motor Flange Material Aluminum
Motor Application Pump
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Sub Application Pool and Spa Pump
Finish Black
Max. Ambient Temp. 50 Degrees C
Motor Frame Material Steel
Duty Cycle Continuous
Usable @ 200V No
Usable @ 208V No
Motor Shaft Design Keyed
No. of Speeds 1
Max. SF Amps 8.8
Weight 22 lb

Description

Pool Pump Motor, Body Dia. 6.5 in, Duty Cycle Continuous, Finish Black, Frame 56J, Hz 60 Hz, Full Load Amps 4.4/8.8, Height 11 in, HP 1/2, Ins. Class B, Length Less Shaft 9 3/8 in, Max. Ambient Temp. 50 Degrees C, Max. SF Amps 8.8, Motor Application Pump, Motor Bearings Ball, Motor Design Permanent Split Capacitor, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

Restrictions

  • This item has been restricted from sale in the following states: NY
