Shop U.S. MOTORS

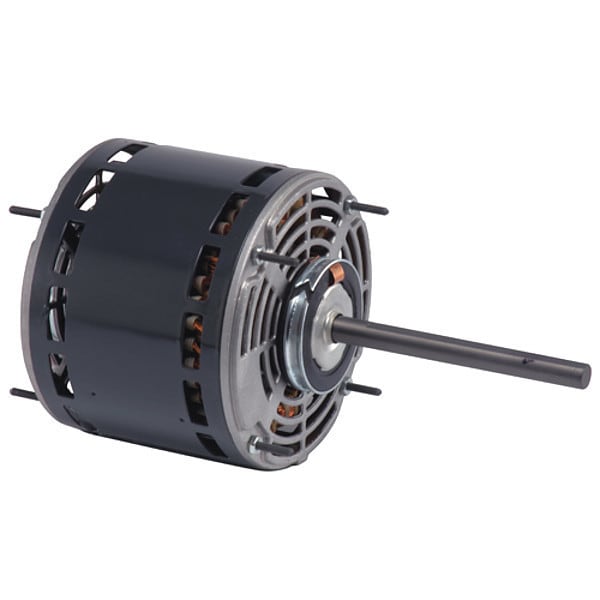

Motor, 3/4HP, 1075/5SPD, 208-230V, 60HZ, 48Y

  • Mfr # 8057

  • Zoro # G0920365

product price:  $417.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
HP
3/4
RPM Range
1,101-1,200
Nameplate RPM
1,075
Voltage
208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8057
Zoro #
G0920365
UPC #
786382006891
Country of Origin
Mexico

Dimensions

Shaft Length
2 1/2 in
Overall Length
8 29/32 in
Body Dia.
5 5/8 in
Length Less Shaft
6 13/32 in
Shaft Dia.
1/2 in
Body Diameter
5.6 in
Frame Size
48Y
Shaft Diameter
1/2 in

Details

Item
Fan and Blower Motor
Motor Design
Permanent Split Capacitor
HP
3/4
RPM Range
1,101-1,200
Nameplate RPM
1,075
Voltage
208-230V AC
Frame
48
Motor Mounting Type
Hub
Phase
Single
Motor Enclosure Design
Open Air-Over
Full Load Amps
4.6 A
Max. Amps
10.27 A
Motor Shaft Rotation
CW/CCW
Motor Service Factor
4.6
Hz
60 Hz
Motor Bearings
6201 (Opposite End Bearing); 6201 (Shaft End Bearing)
Motor Thermal Protection
Auto
Ins. Class
B
No. of Speeds
5
Max. Ambient Temp.
40 Degrees C
Weight
20.72 lb
Watts
600 W
Number of Speeds
5
Full Load Current @ 60 Hz
4.6 A
Product Type
Fan and Blower Motor
Insulation Class
B
Motor Enclosure Type
Open Air Over
Capacitor Required
Capacitor Not Included
Frame Material
Steel
Wattage
600 W
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1
Sub Application
General Purpose
Drive Type
Direct Drive
Frequency
60 Hz

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 5, Voltage 208-230V AC, 4.6 A Full Load Amps, 48Y Frame, Output Watts 600 W, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Hub, Motor Frame Material Steel, Shaft Length 2 1/2 in, Shaft Dia. 1/2 in
