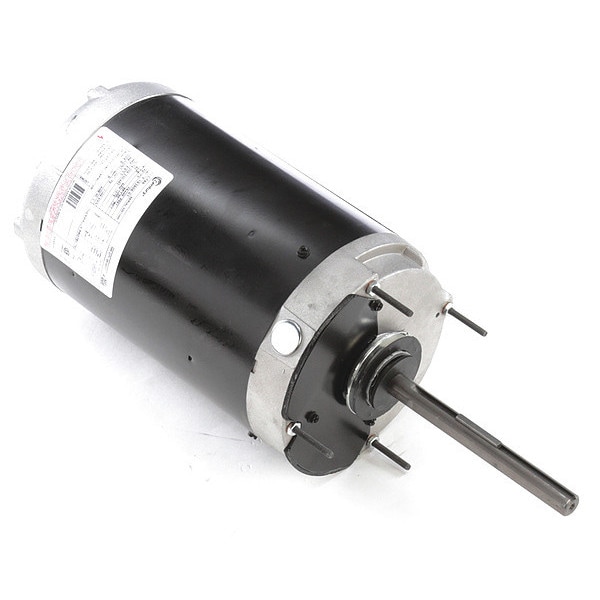

Permanent Split Capacitor Motor

  • Mfr # 2204
  • Zoro # G1933621
product price:
$
332.99
/ea
Free Shipping & Returns

Key Features

HP
1 1/2
Nameplate RPM
1,075
Voltage
208V AC to 230V AC, 460V AC
Frame
56
Shaft Dia.
5/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2204
Zoro #
G1933621
UPC #
786382002251
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
6 in
Length Less Shaft
10 7/8 in
Overall Length
16 7/8 in
Body Dia.
6 5/16 in
Mounting Stud Length
1 1/2 in
Frame Size
56Z
Body Diameter
6.3 in
Shaft Diameter
5/8 in
Wire Rope Length
16 7/8 in
Length
16 7/8 in

Details

HP
1 1/2
Nameplate RPM
1,075
Voltage
208V AC to 230V AC, 460V AC
Frame
56
Motor Shaft Rotation
CW/CCW
RPM Range
1,001-1,100
Motor Design
Permanent Split Capacitor
Motor Application
HVAC/R
Hz
60 Hz
Item
HVAC Motor
Ins. Class
B
Motor Mounting Type
Stud
Capacitor Required
Capacitor Included
Phase
Single
Motor Mounting Position
All Angle
Duty
Continuous
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Motor Sub Application
Condenser Fan
Motor Thermal Protection
Auto
No. of Speeds
1
Full Load Amps
8.5-7.6/3.8 A A
Max. Ambient Temp.
60 Degrees C
Motor Shaft Design
Flat
Motor Service Factor
1
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Bearings
Ball
Nominal Efficiency
82 %
Includes
Capacitor, Outlet Box
Features
Double-Sealed Ball Bearings
Weight
42.4 lb
Duty Cycle
Continuous
Motor Frame Material
Aluminum
Conduit Box Location
Interior
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Usable at 208V
Motor Enclosure Type
Totally Enclosed Air-Over
Full Load Current @ 60 Hz
8.5-7.6/3.8 A A
Frame Material
Aluminum
Sub Application
Condenser Fan
Nameplate Service Factor @ 60 Hz
1
Efficiency Rating
Standard Efficiency (IE1)
Frequency
60 Hz
Shaft Design
Flat
Ambient Temperature - Maximum
60 Degrees C
Drive Type
Direct Drive
Insulation Class
B
Number of Speeds
1
Bearing Type
Ball
Mounting Position
All Angle

Description

HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 8.5-7.6/3.8 A A Full Load Amps, 56Z Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Hub, Stud
