Shop VERSA-MATIC

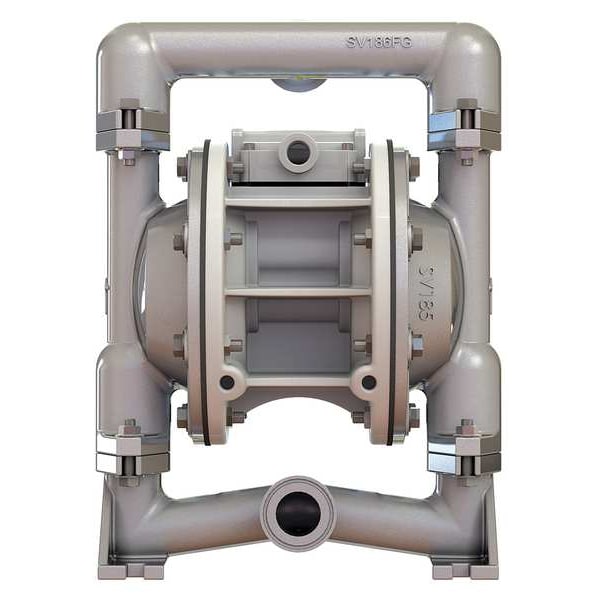

Double Diaphragm Pump, Stainless steel, Air Operated, PTFE, 46 GPM

  • Mfr # E1SP5F559C-FP

  • Zoro # G7024927

product price:  $3,738.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Stainless Steel
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
E1SP5F559C-FP
Zoro #
G7024927
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
3/8 in
Manufacturers Warranty Length
1 yr
Overall Length
9.1 in
Overall Height
14.5 in
Overall Width
10.8 in
Solid Diameter (Maximum)
0.13 in
Media Intake Connection Size
1 in
Media Discharge Connection Size
1 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Stainless Steel
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
Air Intake Connection Type
NPT
Check Seat Material
316 Stainless Steel
Diaphragm Material
PTFE
Media Temperature (Maximum)
220 Degrees F
Operating Pressure (Maximum)
125 psi
Self-Priming Wet
31 ft
Agency Compliance
ATEX, CE, EAC, FDA
Self-Priming Dry
16 ft
Pump Operation Type
Air
Standards
EN ISO 80079-36: 2016, EN ISO 80079-37: 2016, EN60079-25: 2010, FDA Compliant
Inlet/Outlet
1 in
For Use With
Applications requiring FDA approval
Media Intake Location
Bottom
Media Intake Connection Type
Tri-Clamp
Flow Rate @ 100 psi
39.9 gpm
Flow Rate @ 40 psi
32.7 gpm
Flow Rate @ 20 psi
21.9 gpm
Media Discharge Connection Type
Tri-Clamp
Flow Rate @ 60 psi
36.3 gpm
Media Discharge Location
Top
Series Family
E1
Feet of Head (Maximum)
231 ft
Priming
Self-Priming
Flow Rate @ 80 psi
38.7 gpm
Manifold Connection Type
Tri-Clamp
Flow Rate (Maximum)
49 gpm
Air Intake Pressure (Maximum)
100 psi
For Use With Potable Systems
Yes
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Antifreeze, Diesel, Diesel Exhaust Fluid, Gasoline, Kerosene, Oil-Based Paint, Oil, Phosphoric Acid 40%, Phosphoric Acid 50%, Sodium Hydroxide 10%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sulfuric Acid 10%, Water
Wetted Housing Material
316 Stainless Steel
Material Conductivity
Non-Conductive
Includes Clean In Place Technology
No Clean In Place Included
Diaphragm Base Material
PTFE
Includes Solenoid
No Solenoid Included
Center Section Material
Polypropylene
Media Intake Port Configuration
Center Horizontal
Fluid Chamber Assembly Type
Bolted
Diaphragm Reinforcement
Overmolded
Displacement Per Stroke
0.05 gal
Manifold Connection Standard
Tri-Clamp
Series
E1
Manifold Port Connection Type
Single Port
Mounting Hardware Material
Stainless Steel
Surface Roughness
150u-in (Ra 3.81u-m)
Wetted Body Material
316 Stainless Steel
Media Discharge Port Configuration
Center Horizontal

Description

Double Diaphragm Pump, Air Consumption (Maximum) Not Applicable, Air Intake Connection Size 3/8 in, Air Intake Connection Type NPT, Check Seat Material 316 Stainless Steel, Diaphragm Material PTFE, Feet of Head (Maximum) 231 ft, Flow Rate (Maximum) 49 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 in, Media Discharge Connection Type Tri-Clamp, Media Discharge Location Top, Media Intake Connection Size 1 in, Media Intake Connection Type Tri-Clamp
