Shop WAGO

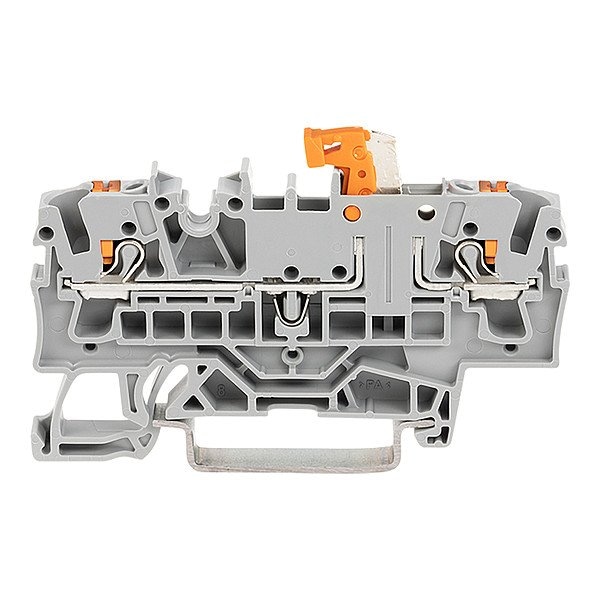

Terminal Block, 2.6" L, 400V, Gray

  • Mfr # 2202-1671

  • Zoro # G822935433

product price:  $7.25
/ea

Key Features

Maximum Voltage
400 V
For Conductor Type
Solid, Stranded
Number of Tiers
1
For Channel Rail Size
35 mm
Number of Connections
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2202-1671
Zoro #
G822935433
UPC #
-
Country of Origin
Germany

Dimensions

For Channel Rail Size
35 mm
Wire Rope Length
2.6 in
For Minimum Wire Size
22 AWG
For Maximum Wire Size
12 AWG
Overall Depth
0.2 in
Strip Length
15/32 in
Overall Length
2.6 in

Details

Maximum Voltage
400 V
For Conductor Type
Solid, Stranded
Number of Tiers
1
Item
Terminal Block
Number of Connections
2
Standards
Aex UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN IEC 60079-0 PTB 20 ATEX 1007U (II 3 G Ex ec IIC Gc), ATEX-Attestation of Conformity, CCC 2020312313000288 (Ex ec IIC Gc), CE, DEKRA EN 60947 71-147887, IEC 60079 IECEx PTB 20.0013U (Ex ec IIC Gc), RoHS Compliant, UKCA, UL 1059 UL-CA-L45172-6189178-11508102-1
Terminal Block Type
Disconnect
Housing Color
Gray
UL 94 Flammability Rating
V-0
Circuit Protection Type
None
Housing Material
Polyamide 66
Connection Type
Push-In
Special Features
2 Jumper Slots, Front-Entry Wiring
For Conductor Material
Copper
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Minimum Operating Temperature
-60 Degrees C
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Current
16 A
Number of Poles
1
Series
2202

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 16 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Gray, Maximum Voltage 400 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 2.6 in
