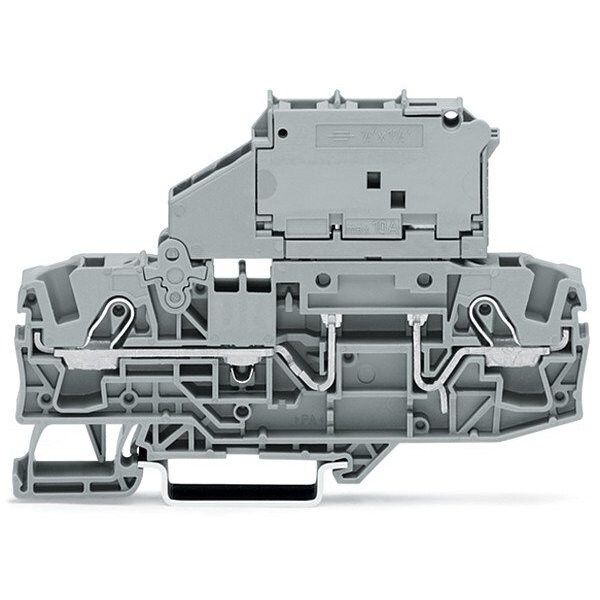

Terminal Block, 3.79" L, 800V, Gray
Mfr # 2006-1631/1000-541
Zoro # G522935481
product price:Â
$
24.15
/ea
Zoro's best price: not eligible for any other offers or promotions
Key Features
Number of Poles
1
For Fuse Diameter
1/4 in
For Channel Rail Size
35 mm
Maximum Voltage
800 V
UL 94 Flammability Rating
V-0
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 2006-1631/1000-541
- Zoro #
- G522935481
- UPC #
- -
- Country of Origin
- Germany
- Number of Poles
- 1
- Maximum Voltage
- 800 V
- UL 94 Flammability Rating
- V-0
- Item
- Terminal Block
- Housing Material
- Polyamide 66
- Minimum Operating Temperature
- -60 Degrees C
- Series
- 2006
- Housing Color
- Gray
- Number of Connections
- 2
- Connection Type
- Push-In
- Current
- 10 A
- For Conductor Type
- Solid, Stranded
- Standards
- ABS EN 60947 24-0152298-PDA, CCA EN 60947 NTR NL 7925/1, CCA IEC 60947 71-122840 REV.1, CE, CSA C22.2 No. 158 1543858, DNV GL TAE00001V2, PRS TE/1094/880590/23, RoHS Compliant, UKCA, UL 1059, UL File No. E45172
- 2-Pole Jumper Compatibility
- 2006-402, 2006-433, 2006-434, 2006-435
- Number of Tiers
- 1
- For Conductor Material
- Copper
- Terminal Block Type
- Disconnect
- Special Features
- 2 Jumper Slots, Front-Entry Wiring
- Circuit Protection Type
- Fuse
Description
Terminal Block, Circuit Protection Type Fuse, Connection Type Push-In, Current 10 A, For Minimum Wire Size 20 AWG, For Maximum Wire Size 8 AWG, Housing Color Gray, Maximum Voltage 800 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, For Fuse Diameter 1/4 in, For Fuse Length 1.25 in, Overall Depth 0.29 in, Overall Length 3.79 in
