  11. Walter - Shoulder Milling Cutter LN13

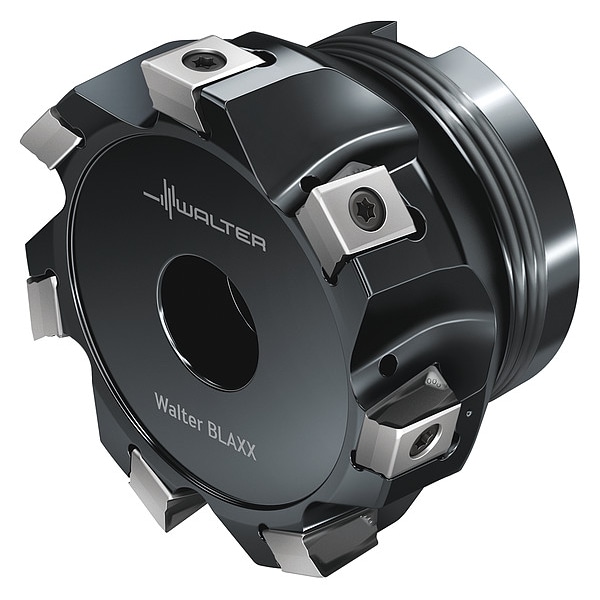

Walter Walter - Shoulder Milling Cutter LN13 F5141.B40.160.Z13.12 - main

Walter - Shoulder Milling Cutter LN13

  • Mfr # F5141.B40.160.Z13.12

  • Zoro # G9382231

product price: $2,006.99
/ea
Free Shipping & Returns

Key Features

Cutting Dia.
6.299"
Series
F5141
Depth of Cut
0.472 in
Overall Length
63.00mm
Number of Inserts Required
13
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
F5141.B40.160.Z13.12
Zoro #
G9382231
UPC #
-
Country of Origin
Germany

Dimensions

Cutting Dia.
6.299"
Depth of Cut
0.472 in
Overall Length
63.00mm
Insert Size
1306
Shank Dia.
1.574"
Insert Cutting Edge Length
12.00mm
Hub Outside Dia.
120.00mm
Arbor Dia.
40.00mm
Max. Cutting Dia.
160.00mm

Details

Item
Indexable Face Mill
Series
F5141
Number of Inserts Required
13
Key
FS2003
Insert Screw
FS2081
For Use With
LNHU1306 Inserts
Pitch
Medium
Cutting Direction
Right Hand
Cutting Angle
90 Degrees
ANSI Number
F5141.B40.160.Z13.12
Side Cutting Edge Angle
90 Degrees
Standards
ISO 6462-A
ANSI Code
F5141.B40.160.Z13.12
ISO Number
F5141.B40.160.Z13.12
Cutting Application
Face Milling (Finishing), Face Milling (Roughing), Shoulder Milling (Finishing), Shoulder Milling (Roughing), Slot Milling
Max. Speed
11,200 RPM
Coolant Fed
Coolant Through
Compatible Hardware
FS2081 T15IP Clamping Screw
Insert Holding Type
Hexagon Socket Head Cap Screw
Number of Coolant Holes
2
Features
4 Cutting Edges per Indexable Insert, Tangential Arrangement of Indexable Inserts

Description

Indexable Face Mill, Max. Cutting Dia. 160.00mm, Arbor Dia. 40.00mm, Depth of Cut 0.472 in, ANSI Code F5141.B40.160.Z13.12, Compatible Hardware FS2081 T15IP Clamping Screw, Coolant Fed Coolant Through, Cutting Application Face Milling (Finishing), Face Milling (Roughing), Shoulder Milling (Finishing), Shoulder Milling (Roughing), Slot Milling
