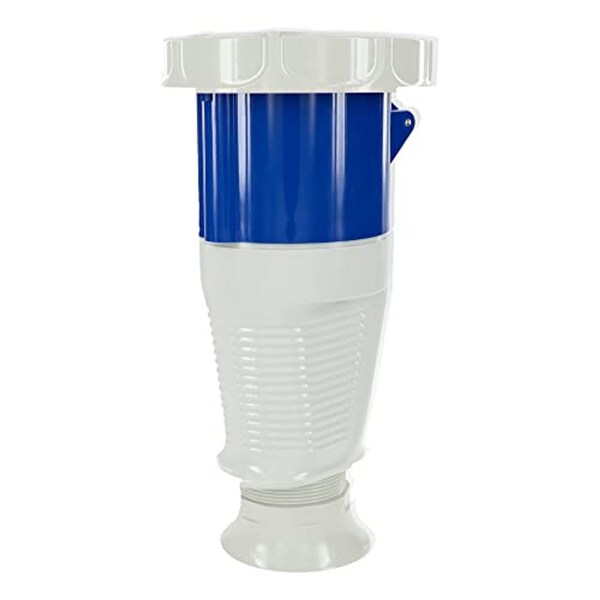

Pin and Sleeve Connector, 60A, 3ø 250 or 230, 3 Phase, 3 Pole, NEMA Not Rated
Mfr # 369409
Zoro # G716275737
product price: $465.99
/ea
Free Shipping & Returns
Key Features
Housing Color
Blue
Number of Poles
3
Wire Connection Type
Screw Terminals
Cap Type
Spring-Loaded Cap
Phase
3
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
369409
Zoro #
G716275737
UPC #
-
Country of Origin
Germany
Dimensions
Height
7.2 in
Width
4.33 in
Length
4.61 in
Details
Housing Color
Blue
Number of Poles
3
Current Rating
60A
Item
Pin and Sleeve Connector
Wire Connection Type
Screw Terminals
Voltage Rating
3ø 250 or 230
Cap Type
Spring-Loaded Cap
Phase
3
Number of Wires
4
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
Standards
IEC 60309, UL Listed, CSA Certified
Cable Gland
Trumpet/Bell Gland
Application
Industrial Electrical
Clock Position
9
Material
Thermoplastic
Description
Walther Electric 369409 Pin and Sleeve Connector 60/63A 4 Wire 230/3o250 VAC 9Hr IP67 Watertight Blue is interchangeable with other IEC 60309 industrial grade 460C9W electrical connectors.
- UL Listed
- CSA Certified
- Trumpet/Bell Gland
- RETAINING DEVICE : Prevents unintentional withdrawal when male and female devices are connected
- SHROUDED PINS: Nickel-plated solid-brass pins offer corrosion protection and excellent conductivity
- FIRST MAKE/LAST BREAK (FMLB): Preventing making or breaking the circuit under load
- COLOR-CODED: All IEC 60309 Pin & Sleeve Devices are color-coded by voltage for easy Identification and safe pairing
- HIGH IMPACT THERMOPLASTIC: Heavy-duty insulated housings are resistant to corrosion and abrasions
