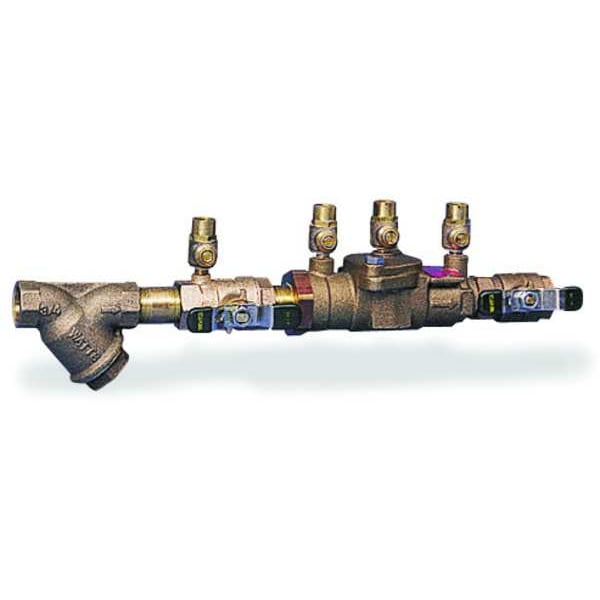

Double Check Valve Assembly, Watts 007

  • Mfr # 007M2QTS-3/4"

  • Zoro # G2302133

product price:  $409.99
/ea
Free Shipping & Returns

Key Features

Body Material
Bronze
Temp. Range
33 Degrees to 180 Degrees F
Width
6 7/8 in
Pipe Size
3/4"
Max. Temp.
180 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
007M2QTS-3/4"
Zoro #
G2302133
UPC #
098268385120
Country of Origin
United States

Dimensions

Width
6 7/8 in
Pipe Size
3/4"
Length
19 1/4 in
Size
3/4 in
Overall Width
6.88 in
Overall Length
19.25 in
Nominal Valve Size
3/4 in
Connection Size - Side 1
3/4 in
Connection Size - Side 2
3/4 in
Wire Rope Length
19.25 in

Details

Item
Double Check Valve Assembly
Body Material
Bronze
Temp. Range
33 Degrees to 180 Degrees F
Max. Temp.
180 Degrees F
Features
Quarter Turn
Standards
ASSE 1015, AWWA C510, CSA B64.5, IAPMO PS31, UPC, USC-FCCCHR
Connection
NPT
Series
Watts 007
Max. Pressure
175 psi
Material of Construction
Bronze
Seat Material
Rubber
Flow
46 gpm
Connection Type - Side 1
NPT
Backflow Preventer Type
Double Check Assembly (DC)
Handle Type
Tee
Connection Gender - Side 1
Female
Mounting Orientation
Horizontal, Vertical
Shut-Off Valve Included
Ball Valve
Includes Freeze Sensor
No Freeze Sensor
Connection Type - Side 2
NPT
Connection Gender - Side 2
Female
Includes Strainer
Strainer Included
Operating Temperature - Minimum
33 Degrees F
Maximum Pressure - Operating
175 psi
Operating Temperature - Maximum
180 Degrees F
Number of Test Ports
4
Hazard Protection Level
Low Health Hazard
Manufacturer Warranty
1 yr
Includes Flow Meter
No Flow Meter
For Media
Water
Valve Series
7

Description

Double Check Valve Assembly, Quarter Turn, Size 3/4 In, NPT Connection, Material of Construction Bronze, Width 6 7/8 In, Length 19 1/4 In, Standards ASSE 1015, AWWA C-510-89, Includes Strainer

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
