  11. Pump Motor, 143/5JM, 3495

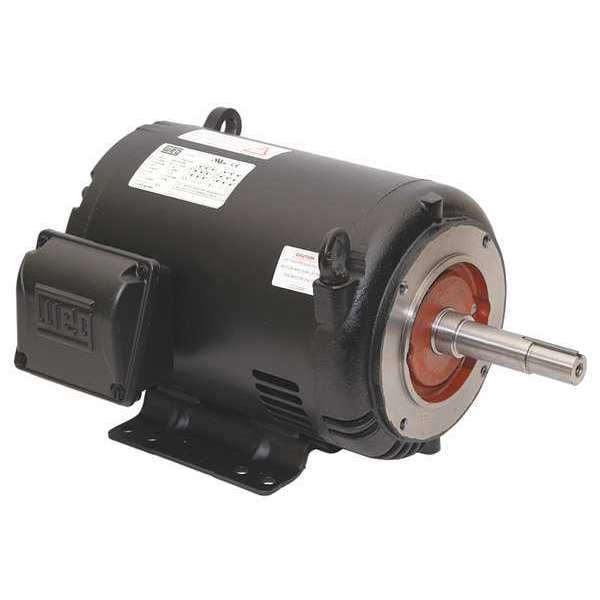

Weg Pump Motor, 143/5JM, 3495 00156OT3E143JM-S - main

Pump Motor, 143/5JM, 3495

  • Mfr # 00156OT3E143JM-S

  • Zoro # G8515053

product price: $511.99
/ea
Free Shipping & Returns

Key Features

Motor Design
3-Phase
HP
1 1/2
RPM Range
3,001-3,600
Nameplate RPM
3,510
Voltage
208-230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
00156OT3E143JM-S
Zoro #
G8515053
UPC #
-
Country of Origin
Multiple

Dimensions

Shaft Length
4 1/8 in
Overall Length
13 11/16 in
Shaft Dia.
7/8 in
Length Less Shaft
9 7/16 in
Bolt Circle Dia.
5 7/8 in
Height
6 3/4 in
Manufacturers Warranty Length
3 yr
Body Dia.
6.6 in

Details

Item
Close-Coupled Pump Motor
Motor Design
3-Phase
HP
1 1/2
RPM Range
3,001-3,600
Nameplate RPM
3,510
Voltage
208-230/460V AC
Frame
143/5JM
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
CC Number
CC029A
Motor Shaft Design
JM Threaded
Motor Thermal Protection
None
Motor Efficiency Group
NEMA Premium Efficient
Max. Ambient Temp.
40 Degrees C
Phase
Three
Full Load Amps
4.0-3.7/1.80
Green Environmental Attribute
Does not Contain Phthalates, Formaldehyde, Toxic Metals, Aromatic and Halogenated Compounds, Butoxyethanol, 2-Methoxyethanl, Isophorone, Methyl Ethyl Ketone, Methyl Isobutyl Ketone, Acrolein, Acrylonitrile
Nominal Efficiency
84 %
Hz
60 Hz
Ins. Class
F
Motor Application
Pump
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Frame Material
Rolled steel
Motor Frame Material
Steel
Duty
Continuous
Motor Enclosure Design
Open Dripproof
Motor Sub Application
Close-Coupled Pump
Inverter Rated
Yes
Motor Bearings
Ball
Standards
CSA (LR38324), CSA (LR50962), UL (E104590), UL (E125311)
HP @ 50Hz
1 1/2
Motor Mounting Position
Horizontal
Conduit Box Position
F1
Duty Cycle
Continuous
Service Factor @ 50Hz
1.15
Usable @ 200V
Yes
RPM @ 50Hz
2,900
No. of Speeds
1
Conduit Box Location
Exterior
Shaft Material
Carbon Steel
Weight
32 lb
Voltage @ 50Hz
190/380, 220/415
NEMA Design
B
Inverter Rating
1000:1
Usable @ 208V
Yes
Regreasable Bearings
Regreasable Bearings
Shaft Type
JM Threaded

Description

Close-Coupled Pump Motor, Body Dia. 6.6 in, Bolt Circle Dia. 5 7/8 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 143/5JM, Hz 60 Hz, Full Load Amps 4.0-3.7/1.80, Height 6 3/4 in, HP 1 1/2, HP @ 50Hz 1 1/2, Ins. Class F, Inverter Rated Yes, Inverter Rating 1000:1, Length Less Shaft 9 7/16 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
