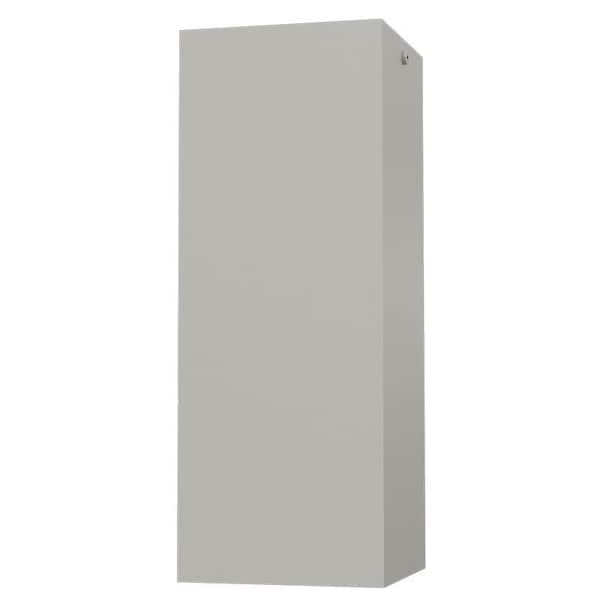

4in SQUARE CYLINDER 10in H, DAMP LOC., 21/28/35W 30/40/50K TRIAC OR 120-277V 0-10V, WH, 21W/28W/35W
- Mfr # CMCS4-MCTP-DD-WH
- Zoro # G624885721
product price:Â
$
172.99
/ea
Free Shipping & Returns
Key Features
Standards
ETL
Power Factor
>0.95
Length
12.59 in
Housing Material
Aluminium&glass
IP Rating
IP20
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CMCS4-MCTP-DD-WH
- Zoro #
- G624885721
- UPC #
- 840378300490
- Country of Origin
- China
Dimensions
- Length
- 12.59 in
- Height
- 4.9 in
- Width
- 4.9 in
Details
- Standards
- ETL
- Power Factor
- >0.95
- Housing Material
- Aluminium&glass
- IP Rating
- IP20
- Rated Life
- 50,000hr
- Color Temperature
- 3000 K, 4000 K, 5000 K
- Lighting Technology
- Hongli COBs
- Lumens
- 80LM/W
- Lens Type
- Clear glass lens
- Beam Angle
- 25°
- CRI
- >80
- Dimmable
- TRIAC& 0-10V Dimming
- Voltage
- 120V to 277V
- Item
- 4In Square Cylinder 10In H
- Operating Temp. Range
- -40 Degrees to 104 Degrees F
- Weight
- 4.1 lb
- Finish
- White
- Fixture Wattage
- 21W/28W/35W
Description
The Westgate CMCS4-MCTP-DD-WH is a 4in square cylinder 10in h. It delivers 80LM/W of 30K/40K/50K light at 21W/28W/35W. Operates on 120-277V input power. Constructed of aluminium&glass in a white finish. Dimming: TRIAC& 0-10V Dimming. Key specifications: CRI >80, power factor >0.95, THD <20%, beam angle 25 Deg, operating temperature -40 DegF to 104 DegF, 50,000hr rated life, IP20 ingress protection. Light source: Hongli COBs. Lens: Clear glass lens. Certifications: ETL.
