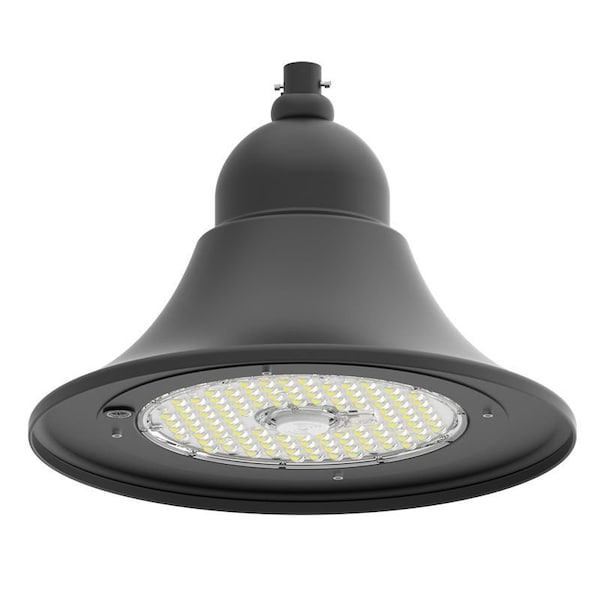

DECORATIVE AREA BELL MODEL B 20in 50/80/100W 30/40/50K 130LM/W 100-347V BLACK, 50W/80W/100W
- Mfr # DAB-B20-50-100W-MCTP-SR
- Zoro # G824885507
product price:Â
$
461.99
/ea
Free Shipping & Returns
Key Features
Lighting Technology
Lumileds 2835
Voltage
120V to 347V
Dimmable
0-10V
Weight
8.05 lb
CRI
>70
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- DAB-B20-50-100W-MCTP-SR
- Zoro #
- G824885507
- UPC #
- 845060092561
- Country of Origin
- China
Dimensions
- Length
- 19.69 in
- Width
- 19.69 in
- Height
- 13.9 in
Details
- Lighting Technology
- Lumileds 2835
- Voltage
- 120V to 347V
- Dimmable
- 0-10V
- Weight
- 8.05 lb
- Item
- Decorative Area Bell Model B 20In 50/80/100W 30/40/50K 130Lm/W 100-347V Black
- CRI
- >70
- Lumens
- 130LM/W
- Standards
- UL
- Max. Fixture Wattage
- 50W/80W/100W
- Fixture Housing Material
- Aluminium
- Power Factor
- >0.90
- Housing Finish
- Black
- IP Rating
- IP65
- Ambient Temp. Range
- -40 Degrees to 104 Degrees F
- Rated Life
- 50,000hr
- Beam Angle
- 140°
- Color Temperature
- 3000 K, 4000 K, 5000 K
Description
The Westgate DAB-B20-50-100W-MCTP-SR is a decorative area bell model b 20in 50/80/100w 30/40/50k 130lm/w 100-347v black. It delivers 130LM/W of 30K/40K/50K light at 50W/80W/100W. Operates on 120-347V input power. Constructed of aluminium in a black finish. Dimming: 0-10V. Key specifications: CRI >70, power factor >0.90, THD <20%, beam angle 140 Deg, operating temperature -40 DegF to 104 DegF, 50,000hr rated life, IP65 ingress protection. Light source: Lumileds 2835. Certifications: UL.
