  11. Indexable Insert Drill, 40.00mm, TCF, Flute Length: 169.20mm
Widia Indexable Insert Drill, 40.00mm, TCF, Flute Length: 169.20mm TCF430R3SLR40MF - main

Indexable Insert Drill, 40.00mm, TCF, Flute Length: 169.20mm

  • Mfr # TCF430R3SLR40MF

  • Zoro # G3777923

product price: $675.99
/ea
Free Shipping & Returns

Key Features

Diameter
40.00mm
Ratio
3xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Overall Length
245.53mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF430R3SLR40MF
Zoro #
G3777923
UPC #
4050841109451
Country of Origin
Bulgaria

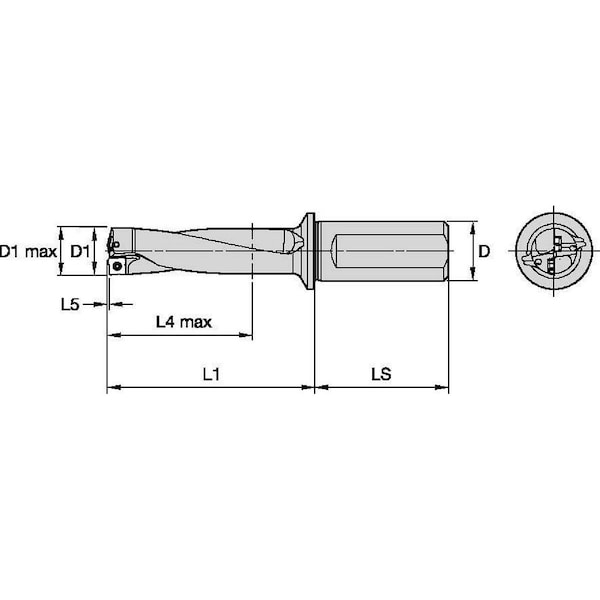

Dimensions

Diameter
40.00mm
Overall Length
245.53mm
Shank Dia.
40.00mm
Shank Length
70.00mm
Min. Drill Dia.
43.00mm
Flute Length
169.20mm
Depth x Dia. Ratio
3xD
Max. Drilling Depth
130.53mm
Max. Drill Dia.
44.00mm

Details

Item
Indexable Insert Drill
Ratio
3xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Coolant Fed
Coolant Through
Central Insert Style
TCF
ISO Number
TCF430R3SLR40MF
Standards
ISO 9766
ANSI Code
TCF430R3SLR40MF
Number of Coolant Holes
2
Shank Type - Machining
Round with Flat and Side Lock
Toolholder Style
TCF
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Flute Type
Slow Spiral
Spiral Direction
Right Hand
Number of Inserts
2
Flanged Shank
Yes
Measurement System
Metric

Description

Indexable Insert Drill, 3xD, Max. Drilling Depth 130.53mm, TCF430R3SLR40MF, TCF, Coolant Through
