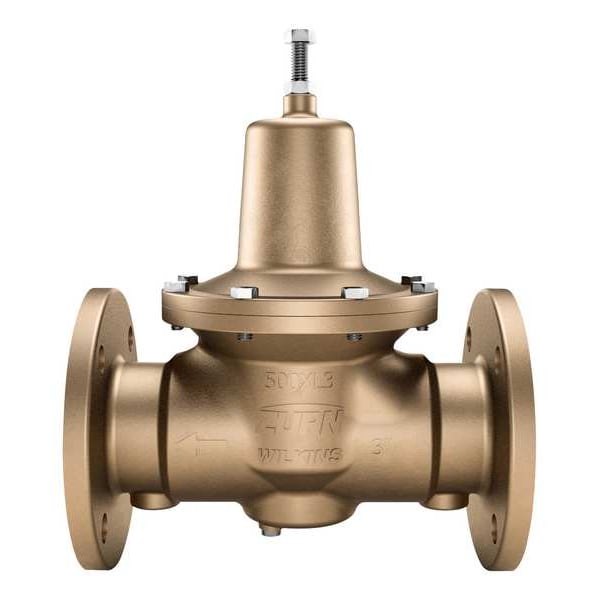

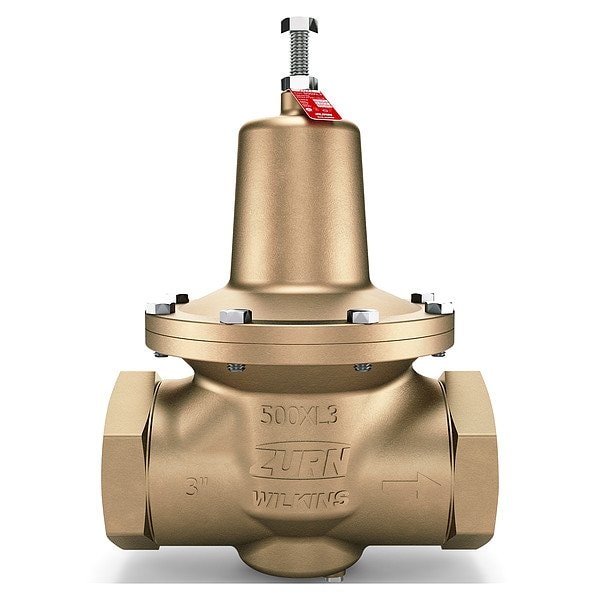

Wilkins Pressure Reducing Valve 212-500XL3 - main

Pressure Reducing Valve

  • Mfr # 212-500XL3

  • Zoro # G303658769

product price: $4,336.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
2 1/2 in
Connection Type
FNPT x FNPT
Body Material
Bronze
Max. Pressure
400 psi
Max. Temp.
140 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
212-500XL3
Zoro #
G303658769
UPC #
612052318097
Country of Origin
China

Dimensions

Pipe Size
2 1/2 in
Overall Height
12 3/4 in
Height
12 7/8 in
Length
8 13/16 in
Outlet Connection Size
2 1/2 in
Overall Width
7 5/16 in
Inlet Connection Size
2 1/2 in

Details

Connection Type
FNPT x FNPT
Body Material
Bronze
Max. Pressure
400 psi
Max. Temp.
140 Degrees F
Item
Pressure Reducing Valve
Preset Pressure Settings
50 psi
Strainer
No
Application
Commercial Use, Residential Use
Standards
ASSE, CSA, cUPC
Compliance
ASSE(R) Listed 1003, CSA(R) Certified, IAPMO(R) Listed, NSF/ANSI 61 /CAN 61 & 372
Material
Lead Free Bronze, Stainless Steel
Valve Type
Pressure Reducing Valve
Pressure Adjustment Range
25 to 75 psi
Factory Set Pressure
50 psi
Pilot Adjustment - Maximum
75 psi
Fluid Temperature - Maximum
140 Degrees F
NSF Certifications for Food and Drinking Water
NSF 372, NSF 61
Port Design
Full Port
Coating/Lining
NSF Listed Fusion Bonded Epoxy Lining and Coating
Inlet Connection Gender
Female
Inlet Connection Type
NPT
Flow Rate - Continuous Maximum
249.9 gpm
Operating Pressure - Minimum
15 psi
Operating Pressure - Maximum
400 psi
Includes Strainer
Strainer Not Included
Union Type
No Union
Outlet Connection Gender
Female
For Media
Water
Outlet Connection Type
NPT
Pilot Adjustment - Minimum
25 psi

Description

Pressure Reducing Valve

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
