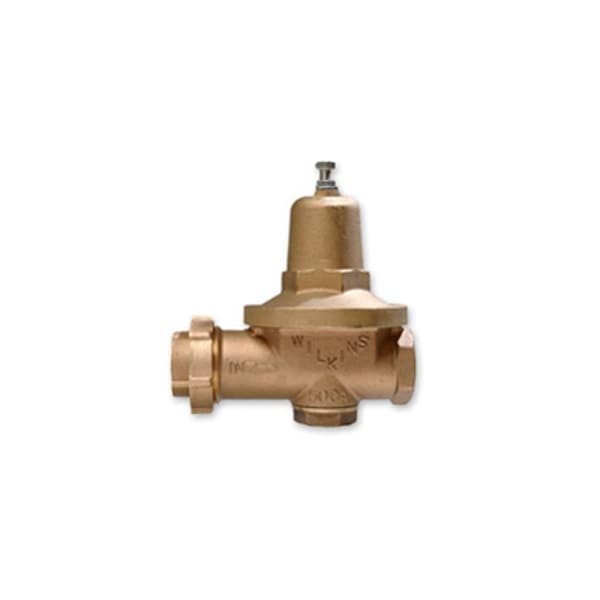

Wilkins Water Pressure Reducing Valve, 2 in Pipe 2-500XLHR - main

Water Pressure Reducing Valve, 2 in Pipe

  • Mfr # 2-500XLHR

  • Zoro # G508230371

product price: $2,833.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
2 in
Connection Type
Single Union
Body Material
Bronze
Max. Pressure
300 psi
Max. Temp.
140 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2-500XLHR
Zoro #
G508230371
UPC #
612052073712
Country of Origin
United States

Dimensions

Pipe Size
2 in
Overall Height
10 7/8 in
Length
9 1/2 in
Height
10 3/4 in
Overall Width
6 1/2 in
Outlet Connection Size
2 in
Inlet Connection Size
2 in

Details

Connection Type
Single Union
Body Material
Bronze
Max. Pressure
300 psi
Max. Temp.
140 Degrees F
Item
Water Pressure Reducing Valve
Preset Pressure Settings
50 psi
Valve Type
Pressure Reducing
Strainer
No
Standards
ASSE 1003, CSA Certified B356, cUPC Listed
Compliance
ASSE 1003, City of Los Angeles, CSA, IAPMO, NSF/ANSI/CAN 61
Factory Set Pressure
50 psi
Pressure Adjustment Range
75 to 125 psi
Material
Bronze
Application
Commercial Use
Fluid Temperature - Maximum
140 Degrees F
Flow Rate - Continuous Maximum
100.1 gpm
Pilot Adjustment - Minimum
75 psi
Union Type
Single
Operating Pressure - Maximum
300 psi
Inlet Connection Gender
Female
Outlet Connection Gender
Female
Operating Pressure - Minimum
75 psi
Port Design
Full Port
Coating/Lining
NSF Listed Fusion Bonded Epoxy Lining and Coating
For Media
Water
Pilot Adjustment - Maximum
125 psi
NSF Certifications for Food and Drinking Water
NSF 372, NSF 61
Outlet Connection Type
NPT
Inlet Connection Type
NPT
Includes Strainer
Strainer Not Included

Description

Water Pressure Reducing Valve,2 in Pipe

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
