  5. Process Pressure Gauge, 0 to 200 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

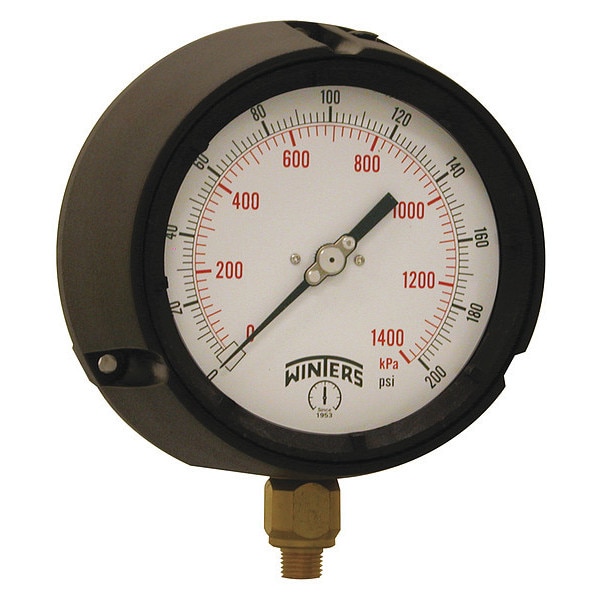

Winters Process Pressure Gauge, 0 to 200 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location PPC5086-SG45 - main

Process Pressure Gauge, 0 to 200 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # PPC5086-SG45

  • Zoro # G6756269

product price:  $115.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PPC5086-SG45
Zoro #
G6756269
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 1/2 in
Case Depth
3.4 in
Nominal Dial Size
4 1/2 in
Bolt Circle Diameter
5.39 in
Case Diameter
5.835 in
Manufacturer Warranty Length
5 yr
Nominal Dial Diameter
4 1/2 in

Details

Item
Process Pressure Gauge
Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Chemical Industries, Oil and Gas Industry, Power Industries, Process Industries
Gauge Case Material
Phenolic
Series
PPC
Lens Material
Safety Glass
Primary Pressure Range
0 to 200
Primary Scale Units
psi
IP/NEMA Rating
IP65
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
Yes
Calibration Certificate Included
No
Case Color
Black
Gauge Special Options
Heavy Duty
For Use With
Brass, Industrial Applications, Media Compatible with Copper Alloy
Case Material
Phenolic
Features
Pressure Relief Back, Solid Front
Gauge Secondary Range Values
0 to 1380
Socket Material
Brass OT58
Standards
ASME, CRN
Connection Type
MNPT
Over-Pressure Limit
25%
Accuracy Grade
ASME B40.100 Grade 2A
Bezel Material
Phenolic
Scale Type
Dual
Process Connection Gender
Male
Movement Material
304 Stainless Steel
Includes Calibration Certificate
No
Dial Color
White
Accuracy Scale
Full Scale
Bezel Gasket Material
Silicone
Field Fillable
Yes
Secondary Pressure Range
0 to 1,400
Sensor Type
Bourdon Tube
Vibration Resistance
Field-Fillable
Dry Dampening Feature
None
Sensor Material
Phosphor Bronze
Pressure Gauge Type
Process Pressure Gauge
Pressure Range Type
Pressure
Non-Sparking
No
Cleaned for Oxygen Service
No
Secondary Scale Units
kPa
Freeze Resistant Movement
No
Panel Mount Characteristics
3 0.240 in Dia Holes on 5.390 in Dia Bolt Circle
Pointer Color
Black
Includes Mounting Hardware
No
Case Construction
Solid Wall
Pointer Characteristics
Micrometer Adjustable
Ambient Operating Temperature Range
-40 Degrees to 120 Degrees C, -40 Degrees to 250 Degrees F
Pointer Material
Aluminum
Includes Vent Plug
No
Removable Bezel
No
Compatible Process Media
Chemicals, Highly Corrosive Media
Dial Face Material
Aluminum
Process Temperature Range
-40 Degrees to 250 Degrees F
Gauge Case Liquid
None
Operating Temperature Range
-40 Degrees to 250 Degrees F
IP Rating
IP65
Process Media Temperature - Minimum
-40 Degrees F
Process Media Temperature - Maximum
250 Degrees F
NEMA Enclosure Rating
4
Compatible with Brand
Universal
Operating Temperature - Maximum
120 Degrees F
Secondary Scale Pressure Measurement - Maximum
1,400 kPa
Primary Scale Pressure Measurement - Maximum
200 psi
Primary Scale Pressure Measurement - Minimum
0 psi
Case Liquid
None
Operating Temperature - Minimum
-40 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 kPa

Description

Process Pressure Gauge, Nominal Dial Size 4 1/2 in, Accuracy +/-0.5 Percent, Gauge Case Material Phenolic, Process Connection Type NPT, Process Connection Gender Male, Lens Material Safety Glass, Process Connection Size 1/4 in, Field Fillable Yes, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP65, Primary Pressure Range 0 to 200, Dry Dampening Feature None, Vibration Resistance Field-Fillable, Dial Color White, Pressure Gauge Type Process Pressure Gauge
