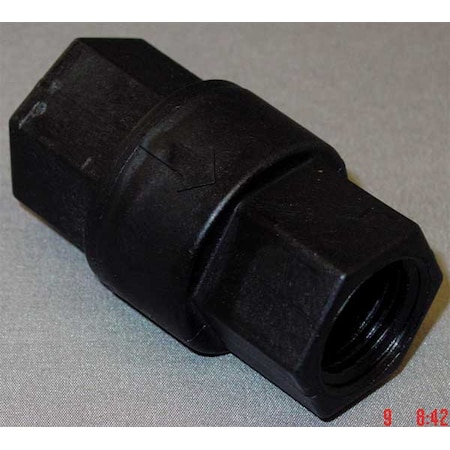

1/2" FNPT Ball Cone Spring Check Valve

Zoro Select 1/2" FNPT Ball Cone Spring Check Valve FP CHK 685-8F8F-F
Tap to zoom
Hover or click to zoom
$16.08
  • Pipe Size: 1/2"
  • Hex Size: 1 1/8"
  • Connection Type: FNPT
See full product details
Orders over $75 ship free.

Total: $16.08

Zoro Select #FP CHK 685-8F8F-F Specifications

  • Pipe Size: 1/2"
  • Hex Size: 1 1/8"
  • Connection Type: FNPT
  • Body Material: Polypropylene
  • Max. Water Pressure - Valves: 125 psi
  • Size: 1/2"
  • Spring Material - Check Valves: Stainless Steel
  • Max. Temp. - Valves: 140 Degrees F
  • Full Flow - Valves: Yes
  • Cracking Pressure: 0.33 psi
  • Pipe or Tube Size - Check Valves: 1/2 in
  • Item: Ball Cone Spring Check Valve
  • Mechanism and Body Design: Inline Ball Cone
  • Max. Water Pressure: 125 psi
  • Flow Design: Single
  • Body Material - Valves: Glass Filled Polypropylene
  • Length: 2.52"
  • Connection Type - Check Valves: FNPT x FNPT
  • Overall Height: 1-7/16"
  • Min. Temp. - Valves: -20 Degrees F
  • Seat Material: Glass Filled Polypropylene
  • Seal Material - Check Valves: Viton
  • Seat Material - Check Valves: Glass Filled Polypropylene
  • Max. Pressure: 125 psi
  • Max. Temp.: 140 Degrees F
  • Mounting Position: Vertical or Horizontal
  • Sub-Category: Polypropylene
  • Seal Material: Viton
  • Width: 1.44"
  • Item - Check Valves: Check Valve
  • Mounting Orientation - Check Valves: Horizontal, Vertical
  • Material of Construction: Glass Filled Polypropylene
  • Max. Steam Pressure - Valves: Not Rated
  • Application - Valves: General Purpose
  • Cracking Pressure - Check Valves: 0.330 psi
  • Spring Material: Stainless Steel
  • Pipe or Tube Size: 1/2 in
  • Mounting Orientation: Horizontal, Vertical
  • Length (Straight Wireway): 2 1/2 in
  • Country of Origin (subject to change): United States

Description

Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Ball Cone, Body Material - Valves Glass Filled Polypropylene, Pipe or Tube Size 1/2 in, Connection Type FNPT x FNPT, Cracking Pressure 0.33 psi, Mounting Orientation Horizontal, Vertical, Seal Material Viton, Max. Temp. - Valves 140 Degrees F, Min. Temp. - Valves -20 Degrees F, Max. Water Pressure - Valves 125 psi, Max. Steam Pressure - Valves Not Rated, Seat Material Glass Filled Polypropylene
