  5. Ammonia & Refrigerant Compound Gauge, 30 to 0 to 300 psi, 2 1/2 in Dial, 1/4 in NPT
Zoro Select Ammonia & Refrigerant Compound Gauge, 30 to 0 to 300 psi, 2 1/2 in Dial, 1/4 in NPT 4CFW7 - main

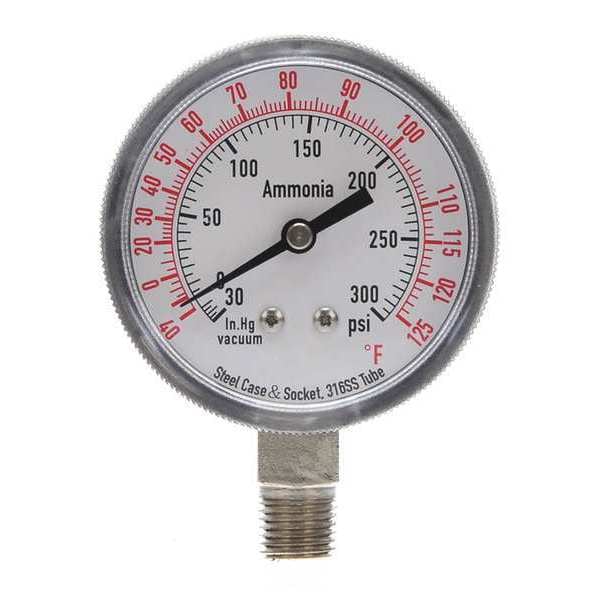

Ammonia & Refrigerant Compound Gauge, 30 to 0 to 300 psi, 2 1/2 in Dial, 1/4 in NPT

  • Mfr # 4CFW7

  • Zoro # G0855723

product price:  $21.59
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Application
Ammonia Refrigerant
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4CFW7
Zoro #
G0855723
UPC #
190735502785
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Nominal Dial Size
2 1/2 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Ammonia & Refrigerant Compound Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Ammonia Refrigerant
Gauge Case Material
Steel
Lens Material
Polycarbonate
Primary Pressure Range
30 to 0 to 300
Primary Scale Units
in Hg/psi
Liquid-Filled Case
No
Panel-Mountable
No
Calibration Certificate Included
No
Smallest Graduation
5 in Hg, 5 psi
Gauge Application
Ammonia Refrigerant
Gauge Primary Range Smallest Graduation
5/5
Case Color
Black
Case Material
Steel
Socket Material
316 Stainless Steel
Connection Type
MNPT
Pressure Accuracy
+/-3-2-3%
Temperature Range °F
-40 Degrees to 150 Degrees F
Pressure Gauge Type
Ammonia & Refrigerant Gauge
Pressure Range Type
Compound
Sensor Material
316 Stainless Steel
Process Temperature Range
-40 Degrees to 150 Degrees F
Pointer Color
Black
Maximum Pressure
300
Operating Temperature Range
-40 Degrees to 150 Degrees F
Primary Scale Vacuum Measurement - Minimum
-30 in Hg
Number of Pointers
1
Process Media Temperature Measurement - Minimum
-40 Degrees F
Primary Scale Vacuum Measurement - Maximum
0 in Hg
Primary Scale Pressure Measurement - Maximum
300 psi
Process Media Temperature Measurement Measurement - Maximum
125 Degrees F
Operating Temperature - Maximum
150 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi

Description

Compound Gauge, Gauge Type Refrigeration Ammonia, Dial Size (In.) 2-1/2, Range 30" Hg Vac to 300 psi, Dial Size (mm) 63, Connection Size 1/4" NPT, Connection Location Lower, Smallest Graduation (PSI) 5, Smallest Graduation (In. Hg) 5, Accuracy (%) +/-3-2-3, Case Material Steel, Case Color Black, Socket Material Steel, Tube Material Stainless Steel, Lens Material Polycarbonate, Operating Temp. Range (F) -40 Degrees to 150 Degrees , Manufacturers Warranty Length 1 Year
