Zoro Select Engine Driven Pump, 6 HP, 2 In. 6CGH2 - main

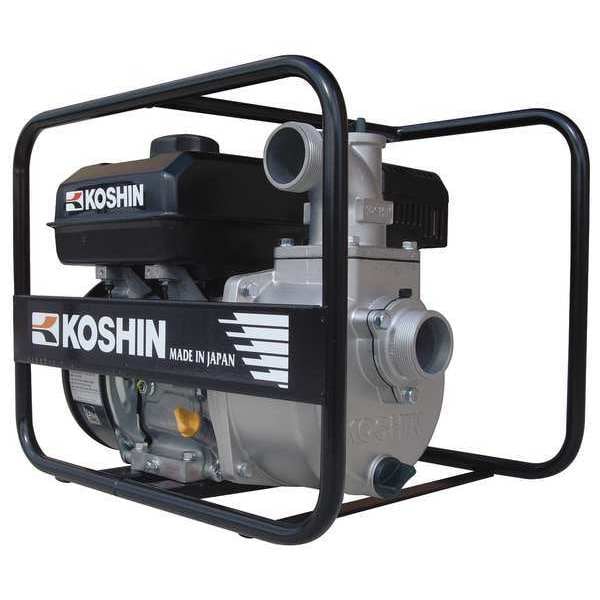

Engine Driven Pump, 6 HP, 2 In.

  • Mfr # 6CGH2

  • Zoro # G1548014

product price: $424.99
/ea
Free Shipping & Returns

Key Features

Application
General Purpose
Number of Impellers
1
Volute/Wear Plate
Cast Iron
Engine Brand
Koshin
Impeller Type
Semi-Open
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6CGH2
Zoro #
G1548014
UPC #
190735539804
Country of Origin
Japan

Dimensions

Width
16"
Height
17"
Length
21"
Engine Size
179 cc
Overall Length
21 in
Discharge Dia.
2 in
Inlet Dia.
2 in
Overall Width
16 in
Max. Diameter Solids
1/8 in
Overall Height
17 in
Discharge Diameter
2 in
Inlet Diameter
2 in
Solids Diameter - Maximum
1/8 in

Details

Application
General Purpose
Number of Impellers
1
Volute/Wear Plate
Cast Iron
Engine Brand
Koshin
Impeller Type
Semi-Open
Solids Handling Capacity
1/8"
Self-Priming
Yes
Max. Head
90 ft
Temp. Range
41 Degrees to 113 Degrees F
Inlet
2 in NPT
GPM of Water @ 40 Ft. of Head
127
GPM of Water @ 60 Ft. of Head
92
Includes
Manual
Agency Compliance
EPA/CARB
Mechanical Seal
Buna N, Carbon Ceramic, Stainless Steel
Material of Construction
Aluminum
GPM of Water @ 50 Ft. of Head
108
Max. Suction Lift
26 ft
Ignition Type
Recoil-Start
GPM of Water @ 20 Ft. of Head
148
Item
Engine Driven Pump
Engine/Motor Type
Gas
Casing Adapter
Aluminum
GPM of Water @ 70 Ft. of Head
66
GPM of Water @ 10 Ft. of Head
156
Roll Bar Frame
Steel
Tank Capacity
3.8 qt
Outlet
2" NPT
Impeller Material
Cast Iron
HP
6 hp
Check Valve
Buna N
Engine RPM
3600
Max. Pressure
35.5 psi
Seal Material
Buna-N/Carbon Ceramic/Stainless Steel
GPM of Water @ 30 Ft. of Head
132
Sensor Type
Low Oil
Power Source
Gas Engine
Discharge
2 in NPT
RPM
3,600 RPM
Inlet Standard
NPT
Discharge Standard
NPT
Impeller Design
Semi-Open
Volute Material
Cast Iron
Flow Rate @ 60 Ft. of Head
92 gpm
Body Material
Aluminum
Pump Mechanism
Centrifugal
Maximum Discharge Pressure
36 psi
Flow Rate @ 40 Ft. of Head
127 gpm
Frame Design - Pumps
Full Tubular Frame
Standards
EPA/CARB
Feet of Head - Maximum
90 ft
Suction Lift - Maximum
26 ft
Discharge Pressure - Maximum
36 psi
Horsepower
6 hp
Rotation Speed - Maximum
3,600 RPM
Frame Design
Roll Cage

Description

Engine Driven Pump, Engine Size 179 cc, HP 6 hp, Tank Capacity 3.8 qt, Ignition Type Recoil-Start, Pump Mechanism Centrifugal, Body Material Aluminum, Volute Material Cast Iron, Seal Material Buna-N/Carbon Ceramic/Stainless Steel, Flow Rate @ 40 Ft. of Head 127 gpm, Flow Rate @ 60 Ft. of Head 92 gpm, Max. Head 90 ft, Max. Suction Lift 26 ft, Frame Design - Pumps Full Tubular Frame, Impeller Design Semi-Open, Maximum Discharge Pressure 36 psi, Max. Diameter Solids 1/8 in, Inlet 2 in NPT
