  11. Kingpin Swivel Caster, Therm Rubber, 3 in., 165 lb.
Zoro Select Kingpin Swivel Caster, Therm Rubber, 3 in., 165 lb. LRXA-TPA 75KFD - main

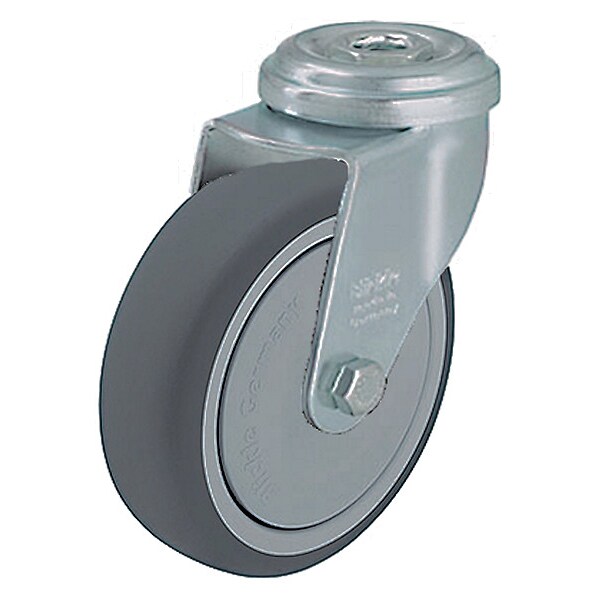

Kingpin Swivel Caster, Therm Rubber, 3 in., 165 lb.

  • Mfr # LRXA-TPA 75KFD

  • Zoro # G6430042

product price: $34.85
/ea

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
165 lb
Wheel Dia.
75 mm
Wheel Width
25 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LRXA-TPA 75KFD
Zoro #
G6430042
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
75 mm
Wheel Width
25 mm
Mounting Height
3 7/8 in
Mounting Bolt Dia.
M10
Bolt Hole Dia.
7/16 in
Overall Height
98 mm
Stem Dia.
7/16" Bolt Hole
Swivel Radius
66.5 mm
Tire Thickness
1/8 in

Details

Item
Swivel Hollow Kingpin Caster
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
165 lb
Wheel/Tread Material
Rubber
Wheel/Tread Hardness Rating
Soft
Wheel Bearing Type
Ball
Caster Brake Type
No Brake
Non-Marking
Yes
Number of Wheels
1
Frame Finish
Stainless Steel
Caster Frame Material
Stainless Steel
Wheel Core Material
Polypropylene
Core Color
Gray
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Features
Corrosion Resistant, Hollow, Semi-Soft Tread
Standards
RoHS, ICWM
Includes
Thread Guards
Caster Core Material
Polypropylene
System of Measurement
Metric
Caster Wheel Bearings
Precision Ball
Caster Temp. Range Available
No
Caster Brake Included
No
Caster Load Rating Range
Light Duty
Replacement Wheel
Mfr. No. TPA 75/6KD-FK
Caster Raceway
Double Ball
Caster Wheel/Tread Material
Thermoplastic Rubber
Wheel Color
Gray
Caster Stem Type
Hollow Kingpin
Extended Lead
No
Caster Swivel Lock Type
No Lock Included
Caster Temp. Range
-20 Degrees To 60 Degrees C
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness
85 Shore A
Wheel/Tread Color
Gray
Series
LRXA Series
Includes Thread Guards
Yes
Caster Break Type
No Brake Included
Load Capacity
75 kg
Caster Mounting Type
Hollow Kingpin
ESD Conductive
No
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Tread Color
Gray
Tread
Standard
Tread Shape
Standard
Compatible Wheel Manufacturer Model Number
TPA 75/6KD-FK
Caster Features
Corrosion-Resistant
Operating Temperature - Maximum
140 Degrees F
Wheel Hardness Rating
85 Shore A
Load Capacity - Maximum
165 lb
Operating Temperature - Minimum
-5 Degrees F

Description

Bolt-Hole Caster, 7/16 in Bolt Hole Dia., 7/16 in Mounting Bolt Dia., Stainless Steel Caster Frame Material, Stainless Steel Frame Finish, 0 to 299 lb Load Rating Range, 165 lb Load Rating, 1 Number of Wheels, Ball, 3 4/5 in Mounting Height, 3 in Wheel Dia., 1 in Wheel Width, Rubber Wheel/Tread Material, 85 Shore A Wheel/Tread Hardness, Soft, Yes Non-Marking
