  13. Miniature Snap Action Switch, Plunger Actuator, SPDT, 15 A at 240 V AC Contact Rating

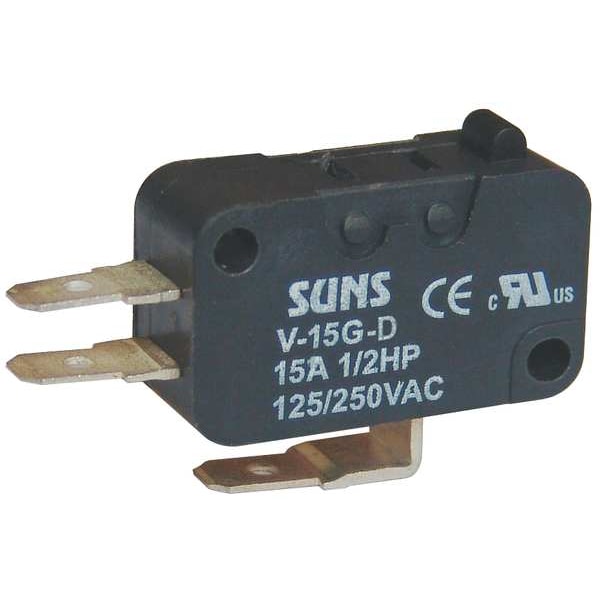

Zoro Select Miniature Snap Action Switch, Plunger Actuator, SPDT, 15 A at 240 V AC Contact Rating 5JEC0 - main

Miniature Snap Action Switch, Plunger Actuator, SPDT, 15 A at 240 V AC Contact Rating

  • Mfr # 5JEC0

  • Zoro # G1422172

product price: $4.35
/ea

Key Features

Actuator Type - Snap Action Switch
Plunger
AC Contact Rating - Snap Action Switch
15 A @ 240 V
Contact Form- Switches
SPDT
Height - Snap Action Switch
0.62 in
Width - Snap Action Switch
1.09 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5JEC0
Zoro #
G1422172
UPC #
190735527535
Country of Origin
China

Dimensions

Height - Snap Action Switch
0.62 in
Width - Snap Action Switch
1.09 in
Length
1.09"
Height
0.625"
Mounting Dimension
0.87" Centers
Mounting Dimension - Snap Action Switch
0.87 in Centers
Actuator Length
1.00"
Overall Height
0.62 in
Body Height
0.62 in
Body Width
1.09 in
Overall Width
1.09 in

Details

Item
Miniature Snap Action Switch
Actuator Type - Snap Action Switch
Plunger
AC Contact Rating - Snap Action Switch
15 A @ 240 V
Contact Form- Switches
SPDT
Voltage Rating
125/250VAC
Current Rating
15A
Operating Force
7.05 oz
Watertight - Snap Action Switch
No
Differential Travel
0.012 in
Contact Form
1NO/1NC
Type of Actuator
Button
Housing Material
Thermoplastic Case and Cover
Over Travel
0.051 in
Terminal Type
3/16" Quick Connect
Series
V
Release Force
2.32 ozf
Max. Pretravel
0.047 in
Operating Temp. Range
-13 Degrees to 185 Degrees F
Electrical Connection - Snap Action Switch
3/16 in Quick Connect
AC Contact Rating
15 A @ 240 V
Operating Force - Maximum
7.05 ozf
Pretravel
0.047 in
Body Material
Thermoplastic
Actuator Style
Plunger
Overtravel
0.051 in
Center Mounting Hole Distance
0.87 in
Differential Travel - Maximum
0.012 in
Electrical Connection
Quick Connect
Operating Temperature - Maximum
185 Degrees F
Operating Temperature - Minimum
-13 Degrees F

Description

Miniature Snap Action Switch, Plunger, AC Contact Rating - Snap Action Switch 15 A @ 240 V, Contact Form- Switches SPDT, Height - Snap Action Switch 0.62 in, Width - Snap Action Switch 1.09 in, Electrical Connection - Snap Action Switch 3/16 in Quick Connect, Mounting Dimension - Snap Action Switch 0.87 in Centers, Series V
