  11. NSF-Listed Plate Caster, 4" Wheel Dia, 350 lb., Rigid

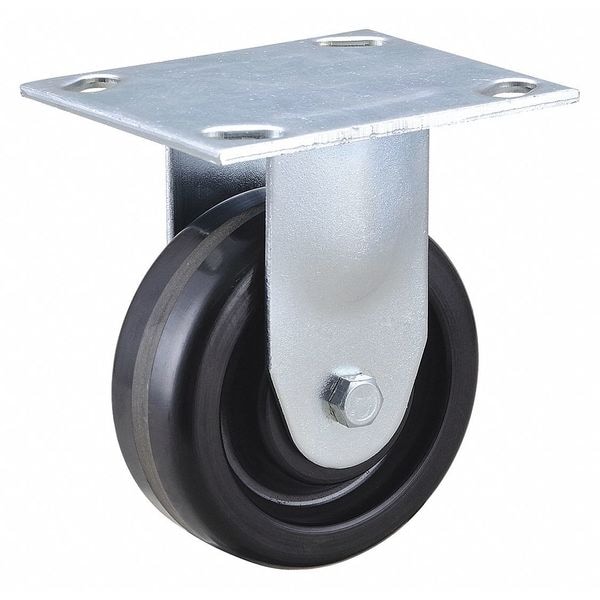

Zoro Select NSF-Listed Plate Caster, 4" Wheel Dia, 350 lb., Rigid 406P69 - main

NSF-Listed Plate Caster, 4" Wheel Dia, 350 lb., Rigid

  • Mfr # 406P69

  • Zoro # G6593848

product price: $13.69
/ea

Key Features

Caster Sub-Type
Rigid
Wheel/Tread Material
Phenolic
Caster Brake Type
No Brake
Wheel Dia.
4 in
Wheel Width
1 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
406P69
Zoro #
G6593848
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Wheel Width
1 1/2 in
Mounting Height
5 3/16 in
Mounting Plate Size
3 3/4 in x 4 1/2 in
Mounting Plate Thickness
5/32in
Mounting Bolt Dia.
7/16 in
Overall Height
5-3/16in

Details

Item
Plate Caster
Caster Sub-Type
Rigid
Wheel/Tread Material
Phenolic
Caster Brake Type
No Brake
Load Rating
350 lb
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
85 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Wheel Color
Black
Caster Brake Included
No
Thread Guards
No
Application
Food Service Racks and Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Extended Lead
No
Standards
NSF Listed
Frame Finish
Zinc Plated
Replacement Wheel
33H624
Caster Temp. Range Available
Yes
Wheel/Tread Hardness Rating
Hard
Includes Thread Guards
No
Load Rating Range
300 to 999 lb
Wheel Core Material
Phenolic
Swivel Construction
Kingpinless
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
Load Capacity - Maximum
350 lb
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 250 Degrees F

Description

Rigid, Plate Caster, Load Rating 350 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
