  11. Plate Caster, 1000 lb. Load, Green Wheel

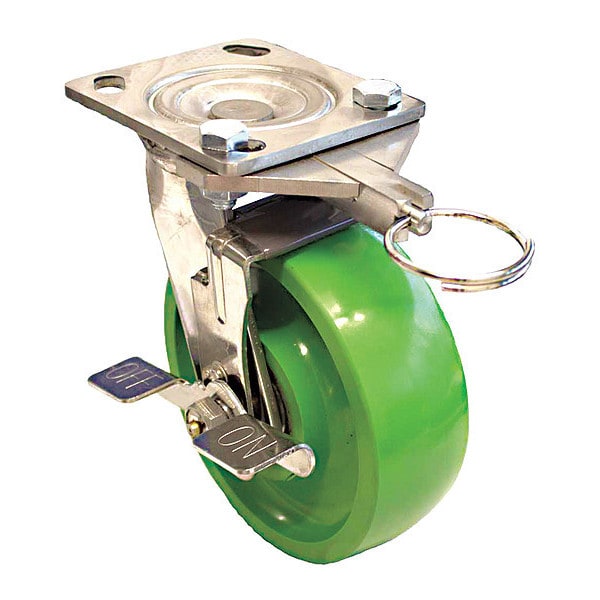

Zoro Select Plate Caster, 1000 lb. Load, Green Wheel P21SX-U080K-14-WB-DL - main

Plate Caster, 1000 lb. Load, Green Wheel

  • Mfr # P21SX-U080K-14-WB-DL

  • Zoro # G1618940

product price: $213.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Directional Lock, Side Brake
Wheel Dia.
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P21SX-U080K-14-WB-DL
Zoro #
G1618940
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
9 1/2 in
Mounting Plate Size
4in x 4-1/2in
Mounting Plate Thickness
15/64in
Mounting Bolt Dia.
3/8 in
Overall Height
9-1/2in
Swivel Radius
6-5/8 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Length
3.625 in
For Axle Dia.
1/2 in
Overall Wheel Width
2 in
Mounting Plate Length
4 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Length
3 in

Details

Item
Swivel Caster with Four Position Swivel Lock and Brake
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Directional Lock, Side Brake
Load Rating
900 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Green
Wheel Hardness Rating
75 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Stainless Steel
Core Color
Green
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Features
Corrosion Resistance, Floor Protective
Extended Lead
No
Includes
Strap Type Brake, 4-Position Directional Lock
Thread Guards
No
Replacement Wheel
Mfr. No. P-U-080x020/050K
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Brake Included
Yes
Caster Temp. Range Available
Yes
Standards
RoHS, ICWM, NSF
Wheel Color
Green
Frame Finish
Zinc Plated
Wheel Core Material
Polyurethane
Load Rating Range
Medium-Duty
Swivel Lock Type
4-Position Directional Lock
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Hard
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpin
Load Capacity
880 lb
Series
P21X Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Tread
Standard
Tread Color
Green
Caster Features
Corrosion-Resistant
Compatible With
Blickle Series
Load Capacity - Maximum
1,000 lb
Mounting Plate Shape
Rectangle
Brake Location
Side
Mounting Hole Type
Slot
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Operating Temperature Range
-15 Degrees To 160 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 900 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Polyurethane, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, Side Brake, Tread Shape Standard
