  11. Plate Caster, 220 lb. Load Rating

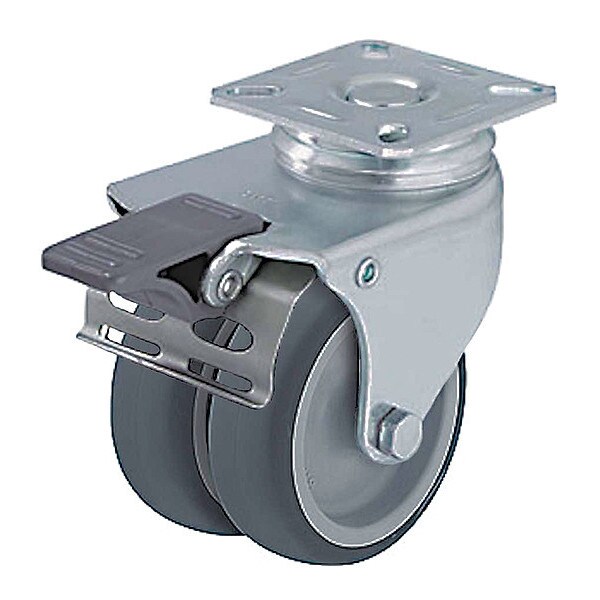

Zoro Select Plate Caster, 220 lb. Load Rating LDA-PATH 75G-FI - main

Plate Caster, 220 lb. Load Rating

  • Mfr # LDA-PATH 75G-FI

  • Zoro # G8517929

product price: $36.15
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Total Lock
Wheel Dia.
3 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LDA-PATH 75G-FI
Zoro #
G8517929
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
3 in
Wheel Width
1 in
Mounting Height
4 in
Mounting Plate Size
2-3/8in x 2-3/8in
Mounting Plate Thickness
5/64in
Mounting Bolt Dia.
7/32 in
Swivel Radius
71.5 mm
Overall Height
3-63/64in
Mounting Plate Width
60 mm
For Axle Dia.
6 mm
Outside Slot Spacing - Width
48 mm
Outside Slot Spacing - Length
48 mm
Mounting Plate Length
60 mm
Inside Slot Spacing - Width
38 mm
Overall Wheel Width
1 in
Inside Slot Spacing - Length
38 mm
Bolt Hole Spacing - Length
1.563 in

Details

Item
Swivel Caster with Total Lock
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Total Lock
Load Rating
220 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Gray
Wheel Hardness Rating
94 Shore A
Number of Mounting Holes
4
Tread Shape
Twin Wheel
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
2
Outside Bolt Hole Spacing
46 mm x 46 mm
Inside Bolt Hole Spacing
40 mm x 40 mm
Caster Plate Hole Pattern
A
Frame Finish
Zinc Plated
Includes
Stop-Fix Total-Lock Brake
Caster Brake Included
Yes
Standards
RoHS, ICWM
Replacement Wheel
Mfr. No. PATH 75/8G
Thread Guards
No
Caster Temp. Range Available
Yes
Extended Lead
No
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Features
Floor Protection, Reduced Swivel Forces
Wheel Color
Gray
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Firm
Swivel Raceway Type
Double Ball
Wheel Core Material
Polypropylene
Swivel Lock Type
Total Lock
Load Rating Range
Light-Duty
Swivel Construction
Kingpin
Tread
Standard
ESD Conductive
No
Tread Color
Dark Gray
Series
LDA Series
Load Capacity
100 kg
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Load Capacity - Maximum
220 lb
Compatible With
PATH 75/8G
Brake Location
Rear
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Mounting Hole Type
Hole
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Operating Temperature - Maximum
160 Degrees F
Operating Temperature Range
-25 Degrees To 70 Degrees C
Operating Temperature - Minimum
-15 Degrees F

Description

Swivel, Plate Caster, Load Rating 220 lb, Swivel Lock Type Total Lock, Wheel Dia. 3 in, Wheel Width 1 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 2, Caster Brake Type Total Lock, Tread Shape Standard
