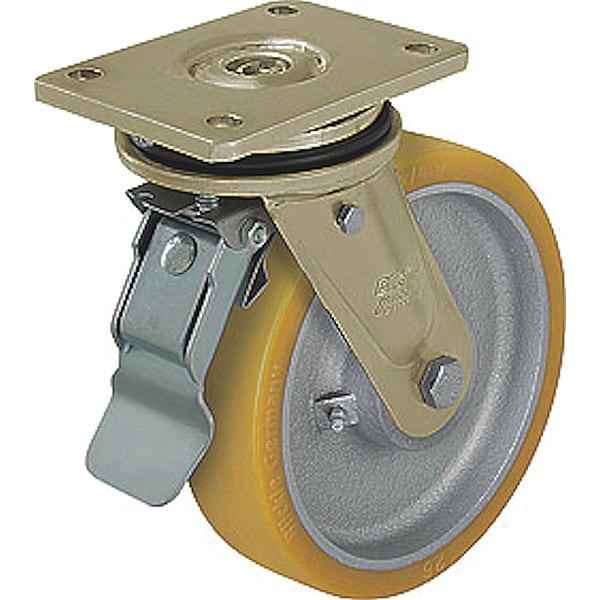

Zoro Select Plate Caster, 3965 lb. Ld Rating, Ball LS-GTH 300K-ST - main

Plate Caster, 3965 lb. Ld Rating, Ball

  • Mfr # LS-GTH 300K-ST

  • Zoro # G8518349

product price:  $556.99
/ea
Free Shipping & Returns

Key Features

Overall Height
14in
Wheel Dia.
12 in
Caster Frame Material
Steel
Caster Brake Type
Total Lock
Swivel Radius
9 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LS-GTH 300K-ST
Zoro #
G8518349
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
14in
Wheel Dia.
12 in
Swivel Radius
9 1/2 in
Wheel Width
2 3/8 in
Mounting Bolt Dia.
9/16 in
Mounting Plate Size
140 mm x 175 mm
Mounting Height
14 in
Mounting Plate Length
5 1/2 in
For Axle Dia.
16 mm
Bolt Hole Spacing - Width
4.125 in
Mounting Plate Thickness
15 mm
Bolt Hole Spacing - Length
5.5 in
Overall Wheel Width
2 3/8 in

Details

Caster Frame Material
Steel
Caster Brake Type
Total Lock
Non-Marking
Yes
Thread Guards
No
Outside Bolt Hole Spacing
105 mm x 140 mm
Caster Temp. Range Available
Yes
Inside Bolt Hole Spacing
105 mm x 140 mm
Features
Floor Protective
Standards
DIN EN 12533, ANSI ICWM
Load Rating
3950 lb
Extended Lead
No
Core Color
Gray
Wheel Color
Yellow
Caster Brake Included
Yes
Caster Sub-Type
Swivel
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Frame Finish
Zinc Plated
Replacement Wheel
Mfr. No. GTH 300/30K
Item
Swivel Caster With Brake
Caster Plate Hole Pattern
D
Number of Wheels
1
Includes
Stop-Top Total-Lock Brake
Wheel/Tread Hardness Rating
Firm
Number of Mounting Holes
4
Includes Thread Guards
No
Tread Shape
Standard
Load Rating Range
Extra-Heavy Duty
Swivel Construction
Kingpin
Swivel Raceway Type
Single Ball/Tapered Roller Bearing
Wheel Bearing Type
Precision Ball
Swivel Lock Type
Total Lock
Wheel Core Material
Cast Iron
Wheel/Tread Material
Extrathane Polyurethane
Wheel/Tread Color
Yellow
System of Measurement
Metric
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
LS Series
Caster Mounting Type
Plate
Load Capacity
1800 kg
ESD Conductive
No
Tread Color
Light Brown
Wheel Hardness Rating
92 Shore A
Compatible With
GTH 300/30K
Load Capacity - Maximum
3,970 lb
Brake Location
Face
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Mounting Hole Type
Hole
Operating Temperature Range
-25 Degrees To 70 Degrees C
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Swivel, Plate Caster, Load Rating 3950 lb, Swivel Lock Type Total Lock, Wheel Dia. 12 in, Wheel Width 2 3/8 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
