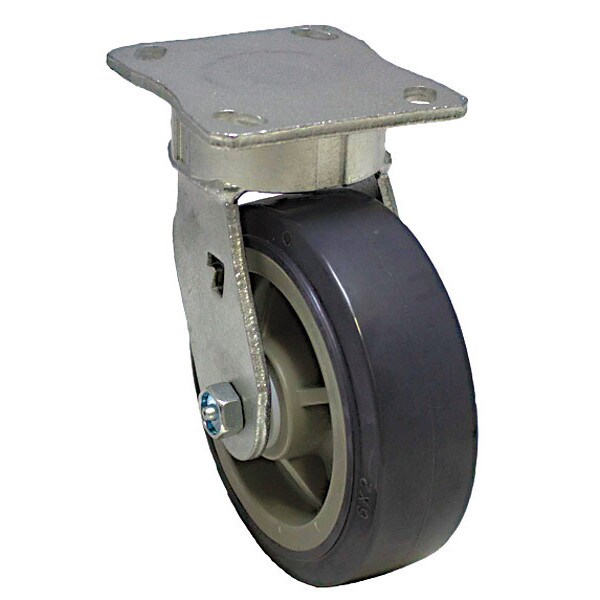

Zoro Select Plate Caster, 600 lb. Load, Gray Wheel P25SX-UP040D-14 - main

Plate Caster, 600 lb. Load, Gray Wheel

  • Mfr # P25SX-UP040D-14

  • Zoro # G7344001

product price:  $173.99
/ea
Free Shipping & Returns

Key Features

Wheel Color
Gray
Swivel Radius
3 1/4 in
Load Rating
600 lb
Includes
Complete Caster
Wheel Dia.
4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P25SX-UP040D-14
Zoro #
G7344001
UPC #
-
Country of Origin
China

Dimensions

Swivel Radius
3 1/4 in
Wheel Dia.
4 in
Overall Height
5-5/8in
Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Mounting Height
5 5/8 in
Mounting Plate Size
4in x 4-1/2in
Outside Slot Spacing - Width
3 in
Overall Wheel Width
2 in
Mounting Plate Length
4 in
Inside Slot Spacing - Width
2.625 in
Inside Slot Spacing - Length
3 in
Mounting Plate Thickness
15/64in
Outside Slot Spacing - Length
3.625 in
For Axle Dia.
1/2 in

Details

Wheel Color
Gray
Load Rating
600 lb
Includes
Complete Caster
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Replacement Wheel
Mfr. No. P-UP-040x020/050D
Number of Wheels
1
Non-Marking
Yes
Caster Brake Type
No Brake
Caster Plate Hole Pattern
B
Standards
ANSI ICWM
Features
Corrosion Resistance, Floor Protective
Caster Brake Included
No
Extended Lead
No
Caster Temp. Range Available
Yes
Thread Guards
No
Item
Swivel Caster
Frame Finish
Polished
Core Color
Gray
Inside Bolt Hole Spacing
3 in x 3 in
Caster Frame Material
Stainless Steel
Caster Sub-Type
Swivel
Wheel/Tread Hardness Rating
Hard
Includes Thread Guards
No
Wheel Core Material
Polypropylene
Wheel Bearing Type
Delrin
Swivel Raceway Type
Single Ball
Tread Shape
Standard
Load Rating Range
Light-Medium Duty
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpinless
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Gray
System of Measurement
Inch
Series
P25X Series
Tread Color
Gray
Resistant To
High Chemical Resistance To Many Aggressive Substances
Caster Mounting Type
Plate
Tread
Standard
Accessories
Optional: P-WB25X 040x200 (Brake Kit), P-DL21X-14 (Directional Lock)
ESD Conductive
No
Load Capacity
600 lb
Caster Features
Corrosion-Resistant
Load Capacity - Maximum
600 lb
Compatible With
P-UP-040X020/050D
Wheel Hardness Rating
55 Shore D
Wheel Bearing Material
Delrin
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel, Plate Caster, Load Rating 600 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
