  11. Plate Caster, 700 lb. Load Rating

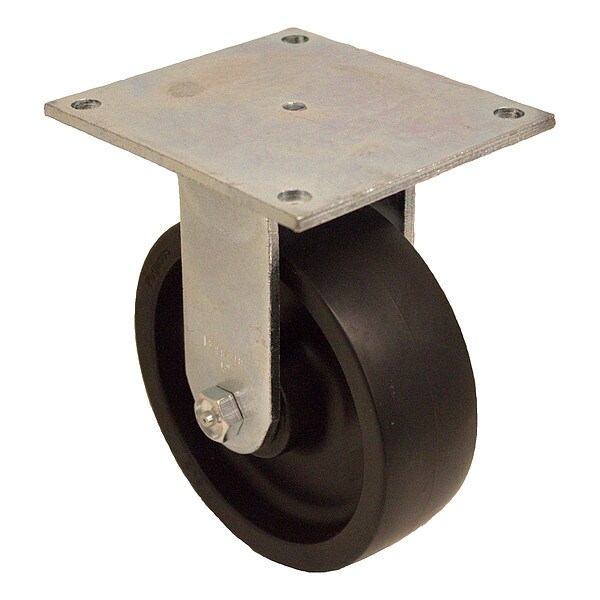

Zoro Select Plate Caster, 700 lb. Load Rating P21R-PB060R-15 - main

Plate Caster, 700 lb. Load Rating

  • Mfr # P21R-PB060R-15

  • Zoro # G5780383

product price: $25.39
/ea

Key Features

Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Polypropylene
Caster Brake Type
No Brake
Wheel Dia.
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P21R-PB060R-15
Zoro #
G5780383
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
2 in
Mounting Height
7 1/2 in
Mounting Plate Size
5 in x 5-1/2 in
Mounting Plate Thickness
0.236 in
Mounting Bolt Dia.
3/8 in
Overall Height
7-1/2in
Swivel Radius
None- Rigid Caster
Bolt Hole Spacing - Width
4.5 in
Bolt Hole Spacing - Length
4.125 in
Overall Wheel Width
2 in
For Axle Dia.
1/2 in
Mounting Plate Length
5 in

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Polypropylene
Caster Brake Type
No Brake
Load Rating
700 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
60 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Inside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Caster Plate Hole Pattern
D
Standards
RoHS, ICWM, NSF
Wheel Color
Black
Features
Chemical Resistance
Thread Guards
No
Frame Finish
Zinc Plated
Caster Brake Included
No
Extended Lead
No
Replacement Wheel
Mfr. No. P-PB-060x020/050R
Caster Temp. Range Available
Yes
Application
Retail, Industrial, Commercial, Corrosion Resistance
Includes Thread Guards
No
Load Rating Range
Medium Duty
Wheel/Tread Hardness Rating
Hard
Swivel Lock Type
No Lock Included
Wheel Core Material
Polypropylene
Series
P21 Series
ESD Conductive
No
Tread Color
Black
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
Load Capacity
700 lb
Load Capacity - Maximum
700 lb
Compatible With
P-PB-060X020/050R
Caster Features
Corrosion-Resistant, Maintenance Free
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Mounting Hole Type
Hole
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-20 Degrees To 180 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Rigid, Plate Caster, Load Rating 700 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polypropylene, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
