  11. Plate Caster, Swivel, Polyurethane, 6 1/8"H
Zoro Select Plate Caster, Swivel, Polyurethane, 6 1/8"H L-PATH 125KF-12 - main

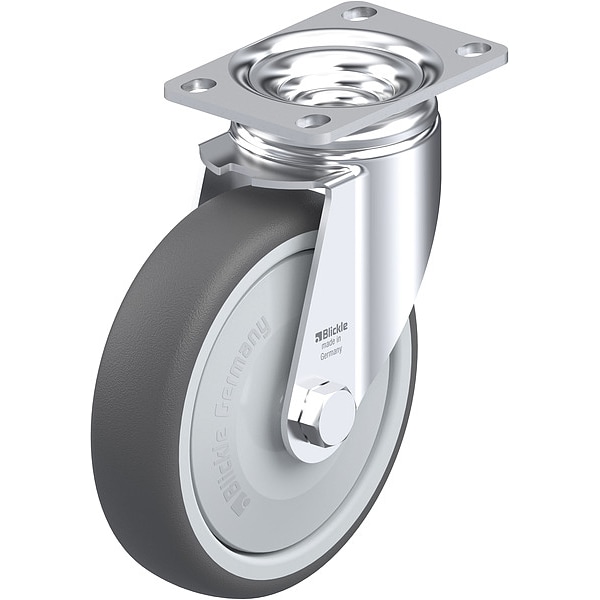

Plate Caster, Swivel, Polyurethane, 6 1/8"H

  • Mfr # L-PATH 125KF-12

  • Zoro # G214810812

product price: $50.55
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Wheel Dia.
5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L-PATH 125KF-12
Zoro #
G214810812
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
5 in
Wheel Width
1 1/4 in
Mounting Height
6 1/8 in
Mounting Plate Thickness
1/8 in
Mounting Bolt Dia.
9 mm
Inside Slot Spacing - Width
1.75 in
Hub Length
38 mm
For Axle Dia.
8 mm
Mounting Plate Length
3 5/8 in
Inside Slot Spacing - Length
2.813 in
Outside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Length
3.063 in
Overall Wheel Width
1 1/4 in
Mounting Plate Width
2 1/2 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Gray
Wheel Hardness Rating
94 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Features
Minimum Swivel Head Play and Smooth Rolling Characteristic and Increased Service Life Due to the Special Dynamic Blickle Riveting Process, Non-Staining, Synthetic Thread Guard Large
Application
Institutional
Frame Finish
Zinc Plated
Series
PATH
Operating Temperature - Minimum
-5 Degrees F
Wheel Core Material
Nylon
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Swivel Raceway Type
Double Ball
Frame Construction
Pressed
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
NSF Listed
No
Includes Thread Guards
Yes
Operating Temperature - Maximum
160 Degrees F
Wheel Core Type
Solid
Load Capacity - Maximum
1,380 lb

Description

Swivel, Plate Caster, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
