  11. Rgd Plate Caster, Rubber, 3-1/8 in., 330 lb

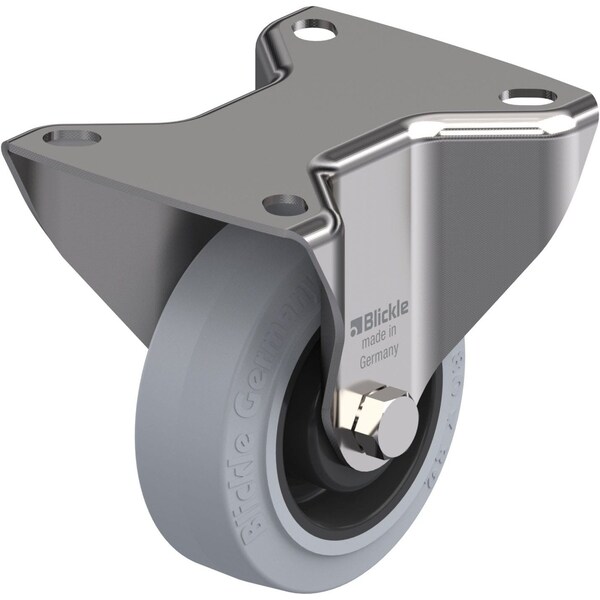

Zoro Select Rgd Plate Caster, Rubber, 3-1/8 in., 330 lb BX-POEV 80XR-SG - main

Rgd Plate Caster, Rubber, 3-1/8 in., 330 lb

  • Mfr # BX-POEV 80XR-SG

  • Zoro # G0385756

product price: $34.95
/ea

Key Features

Caster Sub-Type
Rigid
System of Measurement
Metric
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Wheel Dia.
3 1/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BX-POEV 80XR-SG
Zoro #
G0385756
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
3 1/8 in
Wheel Width
1 1/4 in
Mounting Height
4 in
Mounting Plate Size
3-15/16in x 3-3/8in
Mounting Plate Thickness
7/64in
Mounting Bolt Dia.
9 mm
Overall Height
4in
Bolt Hole Spacing - Length
3.156 in
Bolt Hole Spacing - Width
2.375 in
Overall Wheel Width
1 1/4 in
For Axle Dia.
8 mm
Mounting Plate Length
3 15/16 in
Mounting Plate Width
3 3/8 in

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Metric
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Load Rating
305 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Gray
Wheel Hardness Rating
65 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Stainless Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Caster Plate Hole Pattern
A
Extended Lead
No
Frame Finish
Stainless Steel
Replacement Wheel
Mfr. No. POEV 80/12XR-SG
Caster Brake Included
No
Features
Corrosion Resistant
Wheel Color
Gray
Thread Guards
No
Standards
RoHS, ICWM
Application
Retail, Industrial, Commercial
Caster Temp. Range Available
No
Load Rating Range
Light-Medium Duty
Wheel/Tread Hardness Rating
Soft
Includes Thread Guards
No
Wheel Core Material
Nylon
Swivel Lock Type
No Lock Included
Tread
Standard
Load Capacity
140 kg
Tread Color
Gray
ESD Conductive
No
Series
BX Series
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Caster Features
Corrosion-Resistant, Debris-Resistant
Load Capacity - Maximum
310 lb
Compatible With
POEV 80/12XR-SG
Mounting Hole Type
Hole
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Rigid, Plate Caster, Load Rating 305 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 1/8 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
