  11. Swivel NSF-Listed Plate Caster w/Brake, Rubber, 4in, 200lb
Zoro Select Swivel NSF-Listed Plate Caster w/Brake, Rubber, 4in, 200lb 33H637 - main

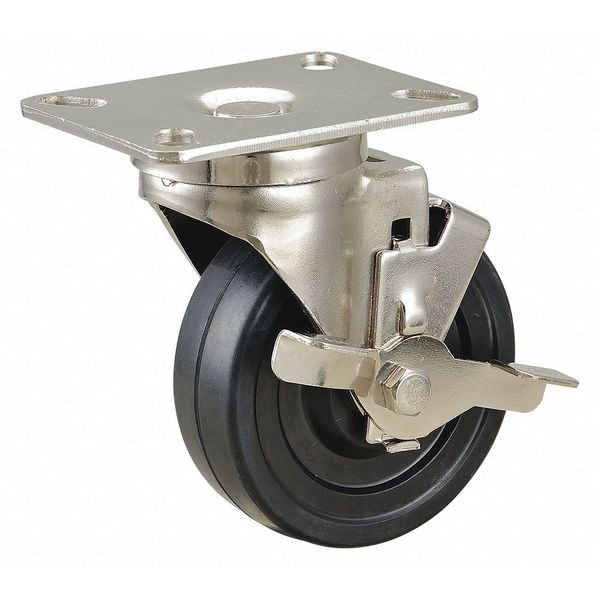

Swivel NSF-Listed Plate Caster w/Brake, Rubber, 4in, 200lb

  • Mfr # 33H637

  • Zoro # G4803391

product price: $18.89
/ea

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Rubber
Caster Brake Type
Side Brake
Wheel Dia.
4 in
Wheel Width
1 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
33H637
Zoro #
G4803391
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Wheel Width
1 1/4 in
Mounting Height
5 3/16 in
Mounting Plate Size
3 1/8 in x 4 1/8 in
Mounting Bolt Dia.
5/16 in
Stem Dia.
No Stem
Overall Height
5-3/16in
Swivel Radius
3 3/8 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Rubber
Caster Brake Type
Side Brake
Load Rating
200 lb
Wheel Bearing Type
Delrin
Wheel/Tread Color
Black
Wheel Hardness Rating
85 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
2-3/8 in x 3-3/8 in
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Caster Plate Hole Pattern
A
Thread Guards
No
Extended Lead
No
Replacement Wheel
Mfr. No. RR0405206G
Wheel Color
Black
Includes
Top and Bottom Grease Seals; Dust Cover
Caster Brake Included
Yes
Application
Food Service Racks and Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Frame Finish
Nickel Plated
Caster Stem Type
No Stem/Plate Included
Caster Temp. Range Available
Yes
Standards
NSF Listed
Wheel/Tread Hardness Rating
Soft
Swivel Raceway Type
Double Ball
Load Rating Range
0 to 299 lb
Includes Thread Guards
Yes
Wheel Core Material
Rubber
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Compatible With
RR0405206G
Load Capacity - Maximum
200 lb
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 180 Degrees F

Description

Swivel, Plate Caster, Load Rating 200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
