  11. Swivel Plate Caster, Nylon, 4 in., 400 lb, Wht
Zoro Select Swivel Plate Caster, Nylon, 4 in., 400 lb, Wht L-PO 100G-12 - main

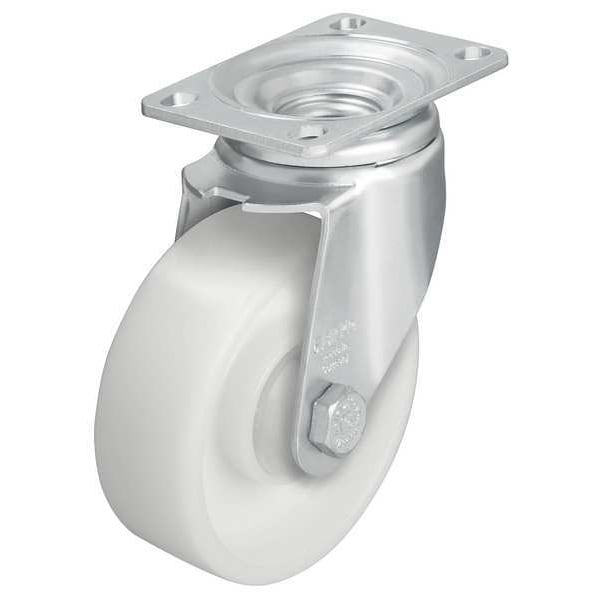

Swivel Plate Caster, Nylon, 4 in., 400 lb, Wht

  • Mfr # L-PO 100G-12

  • Zoro # G6608086

product price: $22.69
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Nylon
Caster Brake Type
No Brake
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
L-PO 100G-12
Zoro #
G6608086
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4 in
Wheel Width
1 7/16 in
Mounting Height
5 1/8 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Plate Thickness
1/8in
Mounting Bolt Dia.
9 mm
Overall Height
5-1/8in
Stem Dia.
No Stem
Swivel Radius
3-7/16 in
Outside Slot Spacing - Width
1.75 in
Overall Wheel Width
1 7/16 in
Inside Slot Spacing - Length
2.813 in
Mounting Plate Length
2 5/8 in
Inside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Length
3.063 in
For Axle Dia.
10 mm

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Nylon
Caster Brake Type
No Brake
Load Rating
400 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
White
Wheel Hardness Rating
70 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
White
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Plate Hole Pattern
C
Caster Brake Included
No
Thread Guards
No
Caster Stem Type
No Stem/Plate Included
Features
American Standard Plate Size
Wheel Color
White
Replacement Wheel
Mfr. No. PO 100/15G
Application
Retail, Industrial, Commercial, Corrosion Resistance
Caster Temp. Range Available
No
Frame Finish
Zinc Plated
Extended Lead
No
Tread
Standard
Tread Color
White
Standards
RoHS, ICWM
Swivel Construction
Kingpin
Wheel Core Material
Nylon
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Hard
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Load Rating Range
Heavy-Duty
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
400 lb
Accessories
Optional: RI-03.12 (Directional Lock)
Series
L Series
Load Capacity - Maximum
550 lb
Compatible With
PO 100/15G
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant
Wheel Core Type
Solid
Mounting Hole Type
Slot
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel, Plate Caster, Load Rating 400 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 7/16 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
