  11. Swivel Plate Caster, Plate Type A, Delrin

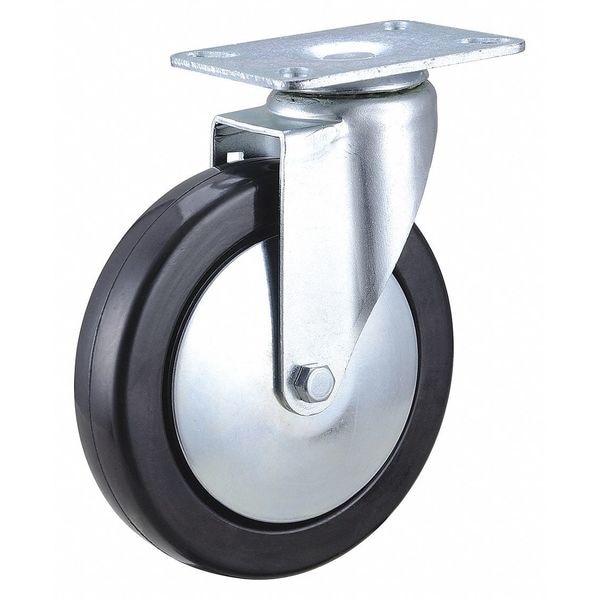

Zoro Select Swivel Plate Caster, Plate Type A, Delrin 33J068 - main

Swivel Plate Caster, Plate Type A, Delrin

  • Mfr # 33J068

  • Zoro # G4805306

product price: $16.25
/ea

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Wheel Dia.
6 in
Wheel Width
1 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
33J068
Zoro #
G4805306
UPC #
190735900895
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
1 1/4 in
Mounting Height
7 5/16 in
Mounting Plate Size
3 1/8 in x 4 1/8 in
Mounting Plate Thickness
5/32in
Mounting Bolt Dia.
5/16 in
Stem Dia.
No Stem
Overall Height
7-21/64in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Load Rating
280 lb
Wheel Bearing Type
Plain
Wheel/Tread Color
Black
Wheel Hardness Rating
85 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
2-3/8 in x 3-3/8 in
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Caster Plate Hole Pattern
A
Application
Food Service Racks and Cases, Hotel Equipment, Institutional Equipment, Laundry Trucks, Stock Carts
Wheel Color
Black
Extended Lead
No
Standards
ANSI, ANSI ICWM
Caster Brake Included
No
Includes
Thread Guards
Frame Finish
Zinc Plated
Caster Stem Type
No Stem/Plate Included
Caster Temp. Range Available
Yes
Thread Guards
Yes
Swivel Raceway Type
Double Ball
Load Rating Range
0 to 299 lb
Wheel Core Material
Rubber
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Includes Thread Guards
Yes
Wheel/Tread Hardness Rating
Soft
Load Capacity - Maximum
280 lb
Operating Temperature - Maximum
155 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 158 Degrees F

Description

Swivel, Plate Caster, Load Rating 280 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
