  11. Swivel Plate Caster, Poly, 4 in., 400 lb., C

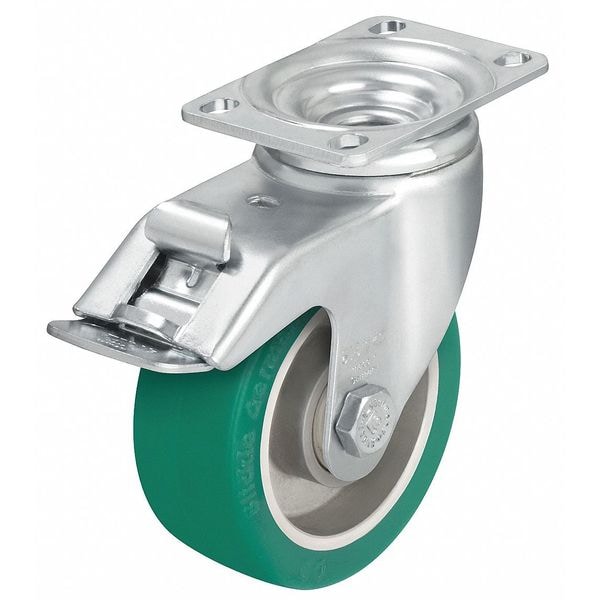

Zoro Select Swivel Plate Caster, Poly, 4 in., 400 lb., C L-ALST 100K-12-FI - main

Swivel Plate Caster, Poly, 4 in., 400 lb., C

  • Mfr # L-ALST 100K-12-FI

  • Zoro # G6872957

product price: $61.39
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Total Lock
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L-ALST 100K-12-FI
Zoro #
G6872957
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4 in
Wheel Width
1 9/16 in
Mounting Height
5 1/8 in
Mounting Plate Size
2 1/2 in x 3 5/8 in
Mounting Plate Thickness
1/8 in
Mounting Bolt Dia.
9 mm
Overall Height
5-1/8in
Stem Dia.
No Stem
Mounting Plate Width
2 1/2 in
Mounting Plate Length
3 5/8 in
Outside Slot Spacing - Length
3.063 in
Overall Wheel Width
1 9/16 in
Inside Slot Spacing - Width
1.75 in
Inside Slot Spacing - Length
2.813 in
For Axle Dia.
8 mm
Outside Slot Spacing - Width
1.75 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Total Lock
Load Rating
400 lb
Wheel Bearing Type
Ball
Wheel/Tread Color
Green
Wheel Hardness Rating
75 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Plate Hole Pattern
C
Application
Commercial, General Purpose, Industrial, Institutional
Features
American Standard Plate Size
Extended Lead
No
Replacement Wheel
Mfr. No. ALST 100/15K
Frame Finish
Zinc Plated
Caster Brake Included
Yes
Thread Guards
No
Wheel Color
Green
Caster Temp. Range Available
No
Caster Stem Type
No Stem/Plate Included
Wheel/Tread Hardness Rating
Soft
Swivel Construction
Kingpin
Load Rating Range
Heavy-Duty
Wheel Core Material
Aluminum
Includes Thread Guards
No
Swivel Lock Type
Total Lock
Swivel Raceway Type
Double Ball
Load Capacity - Maximum
550 lb
Compatible With
ALST 100/15K
Caster Features
Debris-Resistant
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Brake Location
Rear
Mounting Hole Type
Slot
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood

Description

Swivel, Plate Caster, Load Rating 400 lb, Swivel Lock Type Total Lock, Wheel Dia. 4 in, Wheel Width 1 9/16 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
