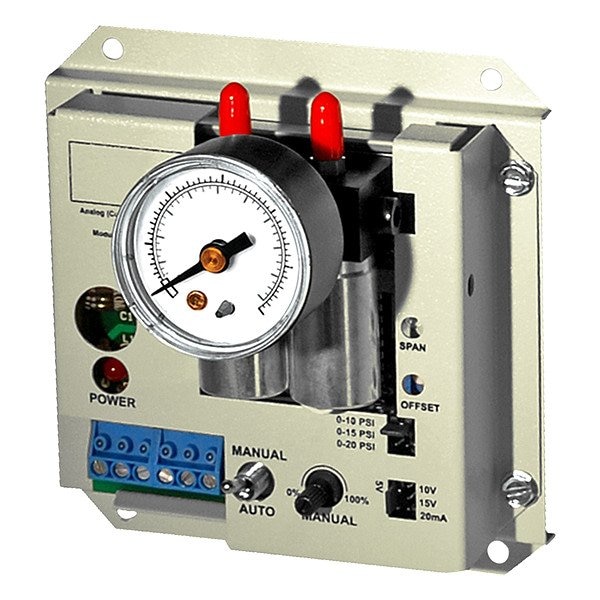

Electro-Pneumatic Transducers
Mfr # EPC2GFSB
Zoro # G423649203
product price:Â $786.99
/ea
Free Shipping & Returns
Key Features
Nominal Pressure Range - Minimum
0 psig
Overall Length
4 1/4 in
Product Type
Analog to Pneumatic Output
Electrical Connections
Screw Terminal
Overall Depth
4 3/8 in
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
EPC2GFSB
Zoro #
G423649203
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
4 1/4 in
Overall Depth
4 3/8 in
Air Connection Size
1/4 in
Overall Width
3 in
Details
Item
Electro-Pneumatic Transducers
Nominal Pressure Range - Minimum
0 psig
Product Type
Analog to Pneumatic Output
Electrical Connections
Screw Terminal
Application
Above Ceiling Applications (Mixing and VAV Boxes), Chiller Loading, DDC Control, Fan Vane Control, Pilot Positioner Control, Pneumatic Valve and Damper Actuator Control, Three Way Mixing Valve Control
Control Action
Direct Acting
Operating Temperature - Maximum
120 Degrees F
Operating Temperature - Minimum
35 Degrees F
Includes Amplifier
Amplifier Not Included
Air Consumption
37.69 L/stroke
Operating Pressure - Maximum
20 psig
Standards
RoHS, WEEE
Mounting Style
Snaptrack
Input Voltage Signal - Maximum
15 V DC
Control Air Pressure
10 psi
Input Signal Type
Current/Voltage
Nominal Pressure Range - Maximum
20 psig
Input Current Signal Minimum
0 mA
Input Voltage Signal - Minimum
0V DC
Input Current Signal Maximum
20 mA
Description
Electro-Pneumatic Transducers, Air Connection Size 1/4 in, Air Consumption 37.69 L/stroke, Application Above Ceiling Applications (Mixing and VAV Boxes), Chiller Loading, DDC Control, Fan Vane Control, Pilot Positioner Control, Pneumatic Valve and Damper Actuator Control, Three Way Mixing Valve Control, Control Action Direct Acting, Control Air Pressure 10 psi, Electrical Connections Screw Terminal, Includes Amplifier Amplifier Not Included, Input Current Signal Maximum 20 mA
