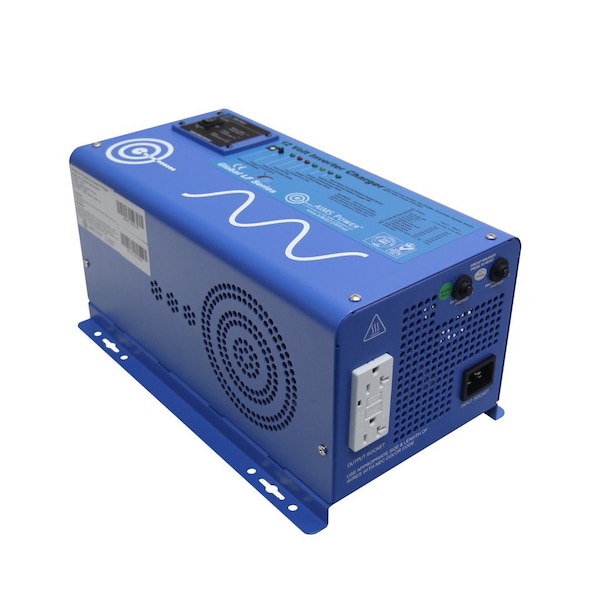

Aims Power Power Inverter and Battery Charger, Pure Sine, 3,000 W Peak, 1,000 W Continuous, 2 Outlets PICOGLF10W12V120VR - main

Power Inverter and Battery Charger, Pure Sine, 3,000 W Peak, 1,000 W Continuous, 2 Outlets

  • Mfr # PICOGLF10W12V120VR

  • Zoro # G4430207

product price:  $681.99
/ea
Free Shipping & Returns

Key Features

Continuous Output Power
1,000 W
Inverter Output Form
Pure Sine
Inverter Input Voltage
12V DC
Inverter Output Voltage
120V AC
Outlet Type
GFCI
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PICOGLF10W12V120VR
Zoro #
G4430207
UPC #
840271002378
Country of Origin
China

Dimensions

Depth
7.1 in
Length
15.5 in
Width
8.74 in

Details

Item
Power Inverter and Battery Charger
Peak Output Power
3,000 W
Continuous Output Power
1,000 W
Inverter Output Form
Pure Sine
Inverter Input Voltage
12V DC
Inverter Output Voltage
120V AC
Outlet Type
GFCI
DC Connection
Battery Cables
Number of Outlets
2
Includes
Inverter Charger
Nominal Output Power
1,000 W
Application
Off-grid home back up power, solar systems, business back-up power, campsites, tailgating parties or any recreational locations
Features
1000 watt low frequency inverter, 3000 watt surge for 20 seconds 300% surge capability, Battery priority selector, Terminal block, GFCI outlet – 10 amps, Marine coated and protected, Multi stage smart charger 35 Amp for gel, AGM, lead and lithium LiFePO4, Remote panel available, Auto frequency, 10msec typical transfer time, Selectable 25W power save mode (hibernation), 7 battery type settings for charger, Automatic transfer switch
Specification
Specifications:Inverter Output Specifications: Input Specifications;Charger Specifications;Transfer Switch Specifications;Dimensions;Continuous Output Power: 1000 Watts;Surge Rating: 3000 Watts (20 Seconds);Output Waveform: Pure Sine/Same as input (Bypass Mode);Nominal Efficiency: >88% (Peak);Line Mode Efficiency: >95%;Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz;Typical Transfer Time: 10ms (Max);Bypass Breaker – 20 amps;THD: < 10% DC;Ambient operating temperature: 14°F to 122°F (-10°C to 50°C);Nominal Input Voltage: 12.0Vdc;Minimum Start Voltage: 10.0Vdc;Low Battery Alarm: 10.5Vdc-11.0Vdc;Low Battery Trip: 10.0Vdc-10.5Vdc;High Voltage Alarm: 16.0Vdc;Low Battery Voltage Restart: 13.3Vdc;Idle Consumption: &lt 12.5 watts;Charger Breaker 10 amps;Power Saver Mode Idle Consumption: <7.5 wattsC;Output Voltage: Depends on battery Type;Charger Rate: 35A;Over Charge Protection Shutdown 15.7V;Selectable Charge Setting Dial;Adjustable Charge Current: off-20%-100%;Four Stage Smart Charger;30 amp auotmatic transfer switch;10 ms (max);Unit Weight: 35 lbs.;Unit Size L x W x H: 14.1 x 8.74 x 7.10 inches;Shipping Weight: 39 lbs.;Shipping L x W x H 20.75 x 12.75 x 12.50 inches
Line Mode Efficiency
>95%
Nominal Efficiency
>88% (Peak)
Color
Blue

Description

Inverter Charger,Pure Sine,12V,1000W
